Descriptions
Product Features

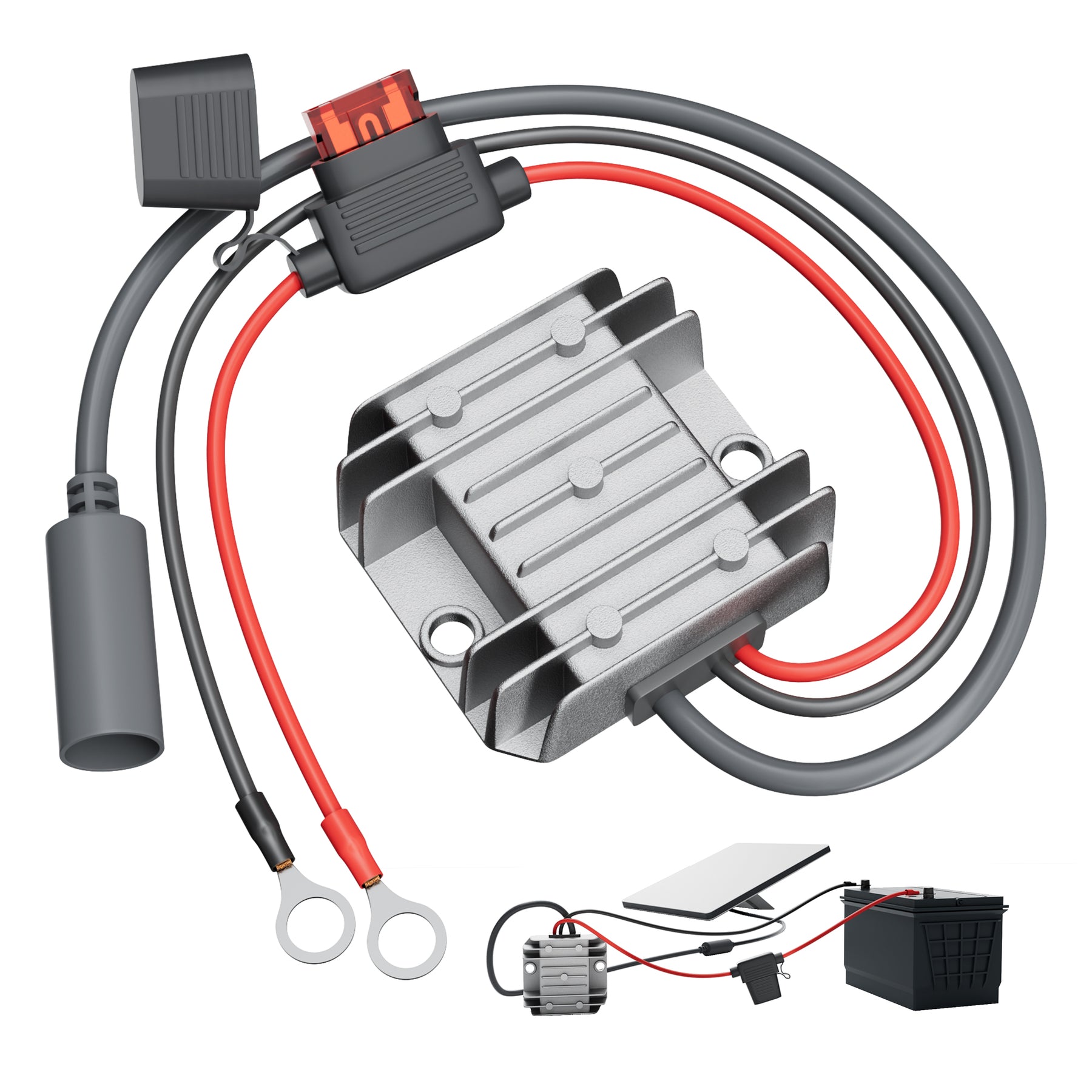

30V 3.5A Mini Output: The boost converter supplies a 30V 3.5A output for a compatible Starlink Mini. The regulated step-up connection supports satellite operation from a lower-voltage DC battery source.

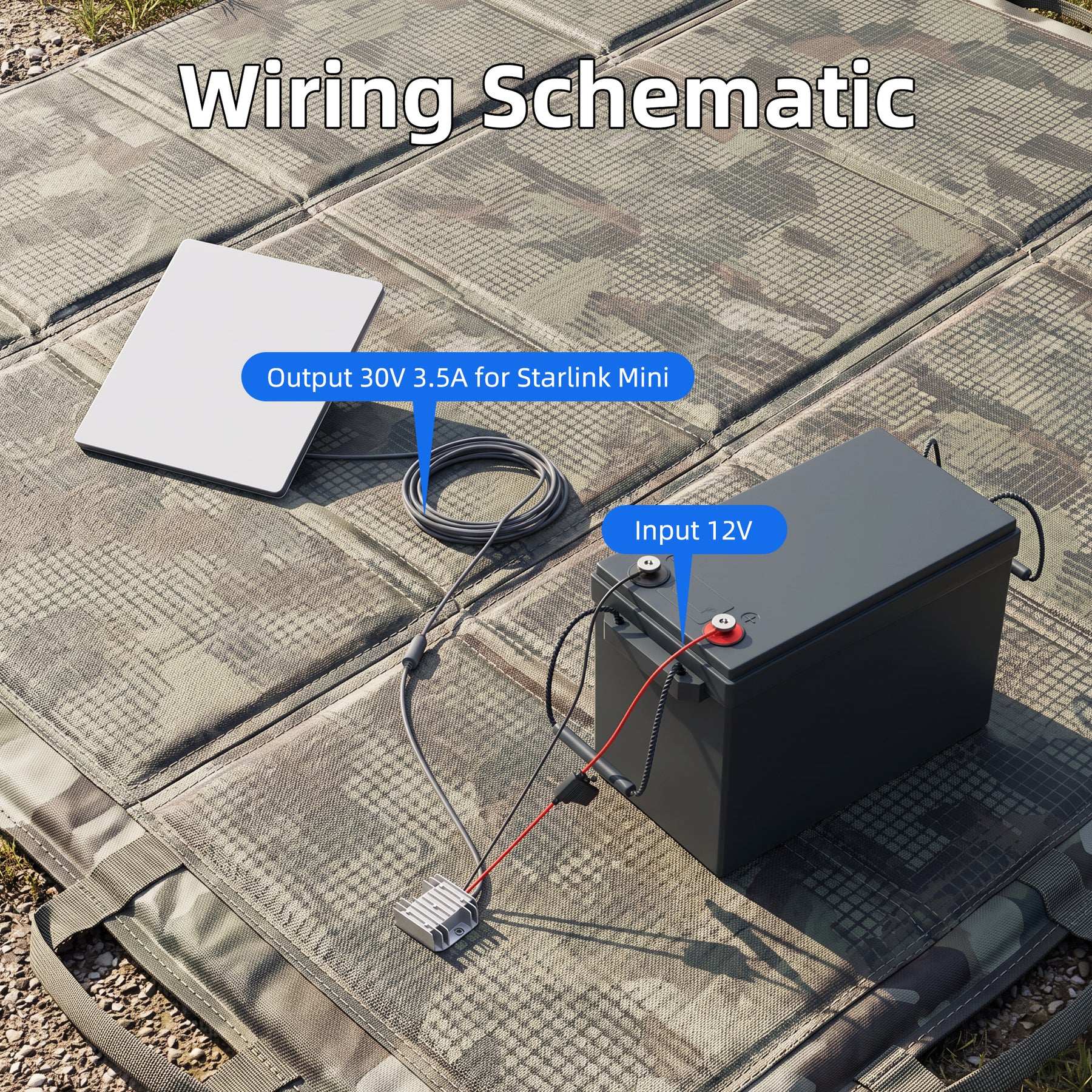

Direct Battery Terminals: The red and black input leads end in ring terminals for a suitable battery connection. The fixed terminal connection avoids relying on a loose cigarette-lighter plug in stationary or mobile installations.

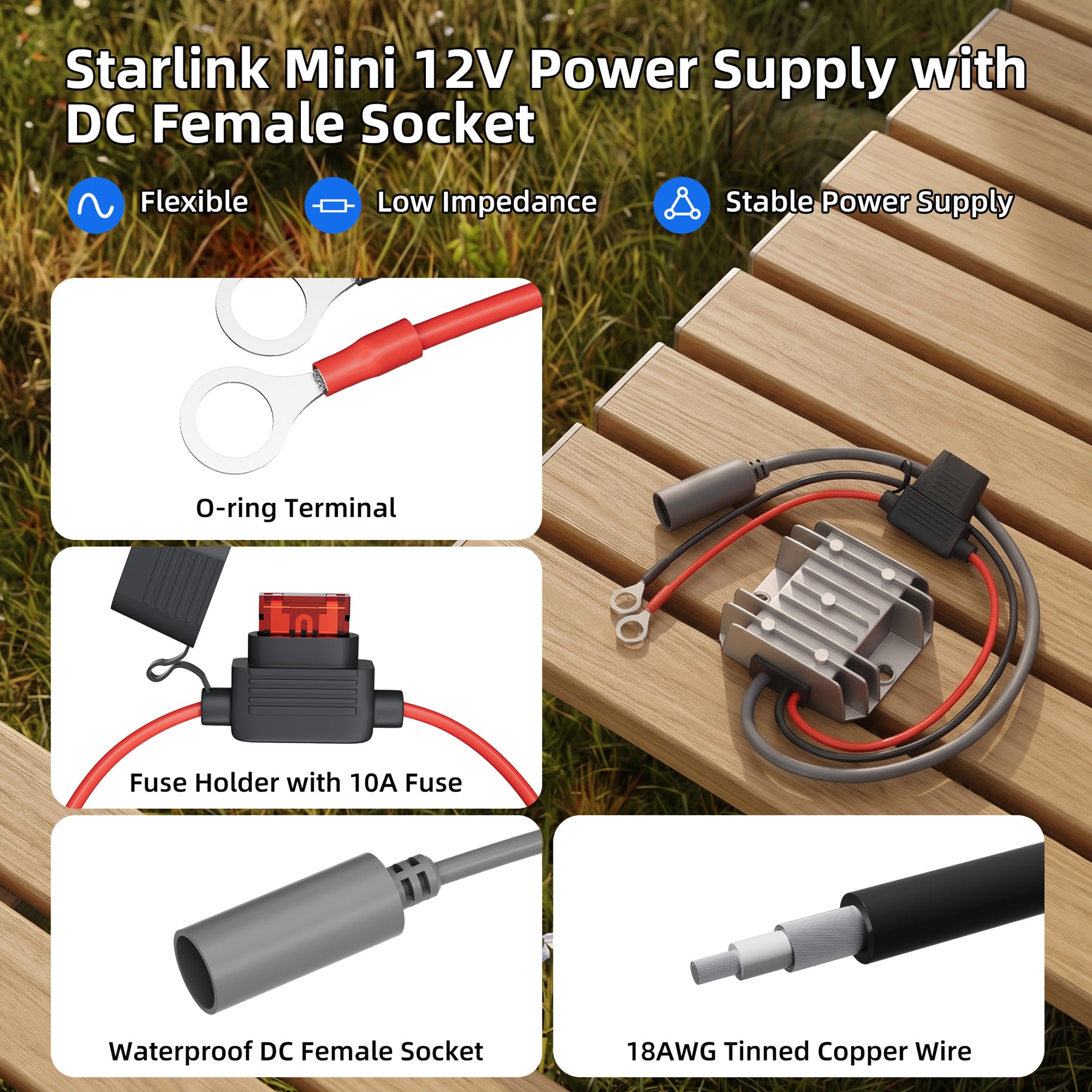

Integrated 10A Fuse: The positive input lead includes a holder with a replaceable 10A blade fuse. The accessible fuse protects the input cable and can be serviced without opening the converter housing.

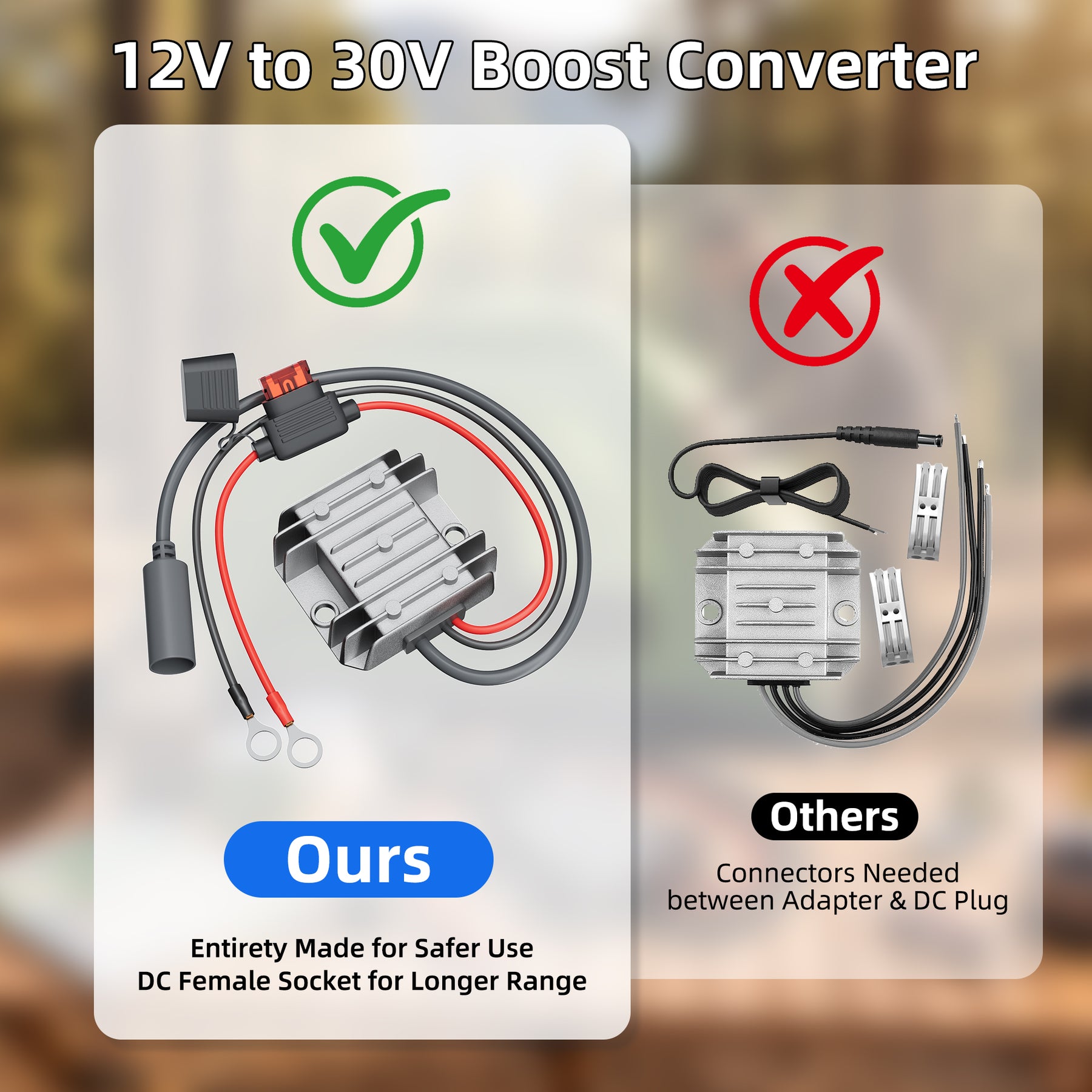

Weather-Resistant DC Socket: The output lead terminates in a covered DC female socket for the Starlink Mini power plug. The molded socket keeps the conversion and dish connection in one compact cable assembly.
Protected Finned Converter: The finned metal housing releases heat and includes over-current over-voltage under-voltage and temperature protection. The combined protection functions support steadier operation around batteries generators vehicles and solar power systems.
Technical Specifications
| Model | DC-DC30V3.5A-F |
| Product Type | DC step-up boost converter cable |
| Input | 12V DC |
| Output | 30V DC 3.5A |
| Wire Gauge | 18 AWG tinned copper |
| Input Connection | Red and black ring terminals |
| Output Connection | Weather-resistant DC female socket |
| Input Fuse | 10A replaceable blade fuse |

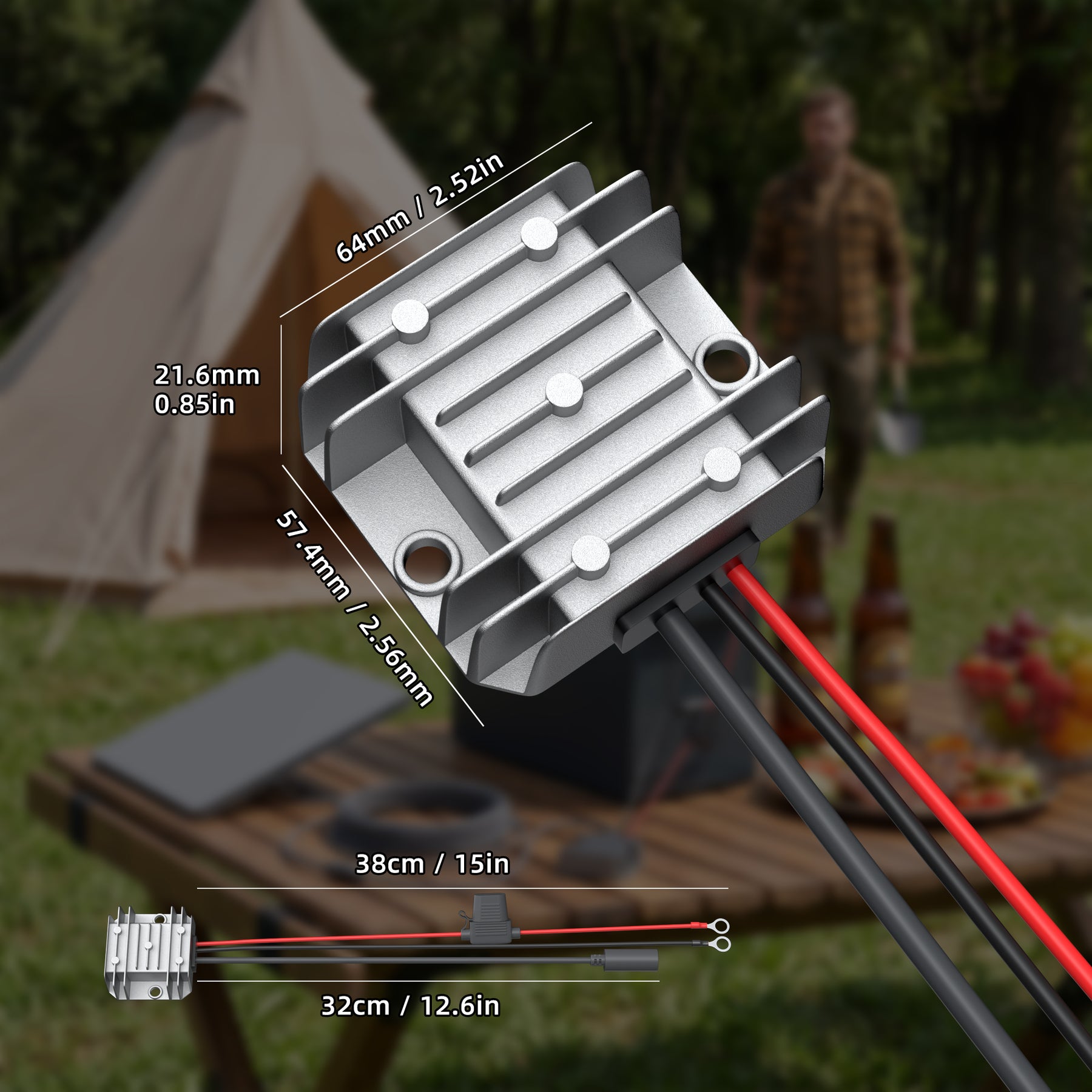

| Converter Size | 64 x 57.4 x 21.6 mm |
| Lead Lengths | Input 38 cm / 15 in; output 32 cm / 12.6 in |
| Circuit Protection | Over-current over-voltage under-voltage and temperature |
| Compatibility | Starlink Mini |
