150A 4 Studs M8 5/16” 12V Electrical Copper Bus Bar

Regular price$19.99
/
Shipping calculated at checkout.

Stud Size

このサイトはhCaptchaによって保護されており、hCaptchaプライバシーポリシーおよび利用規約が適用されます。

  • Descriptions
  • Technical Data Sheet
  • Shipping & Returns
  • Reviews

Descriptions

About this item

【Terminal】- Positive and negative 4 studs terminal bus bar, each battery busbar terminal block includes 4 x M8 (5/16”) terminal studs and 6 x M4 (#8) screw design, both are stainless steel material.

【Rating】- This 12V marine insulated busbar can handle voltage @ Max 300V AC, 48V DC, and continous amperage @ Max 130A AC, 150A DC.

【Round Corner Base】 - This dc bus bar terminal block is unique round corner base design, which makes the battery distribution block unique and special, looks more extraordinary compared with other busbars.

【More Open Area Design Cover】 - The cover of this marine busbars will allow 180° wire lug installation and can meet variety kinds of installat methods of end terminals.

【Application】 - This automotive power distribution block uses copper plates and stainless steel terminals as conductors, which enables the distribution block to work in extreme environment, suitable for automotive, car, RVs, trucks, marine, boat,solar energy, etc.

Package Includes:

1 x Positive Bus Bar

1 x Negative Bus Bar

4 x Mounting Screws

Specifications for this item

Part NO BB150-T4M8S6-C
Connection Type Red for Positive
Black for Negative
Terminal Studs 4 x M8 (5/16")
Terminal Screws 6 x M4 (#8)
Max Voltage 300V AC, 48V DC
Max Continuous Amperage 130A AC, 150A DC
Base Material Nylon
Plate Material Copper
Terminals Material Stainless Steel
Cover Material Clear Polycarbonate
Overall Dimension 150mm x 28mm x 35mm (LxWxH)

Technical Data Sheet

Shipping & Returns

Shipping Policy (Full Shipping Details)

Standard Shipping: 7-15 business days.

Expedited Shipping: 3-7 business days (FedEx, DHL, or UPS).

Shipping costs vary by country and are shown at checkout.

PS: Shipping may be delayed during holidays and vacations. We apologize for any inconvenience and appreciate your patience.

Refunds & Returns

Refund Arrival Time: 3-5 working days

Refund Path: return to the original path

Refund Contact Information: angel@chinadaier.com

Reviews

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Borbur

Quite a good versatile design. The smaller taps came in quite handy.

c
charles

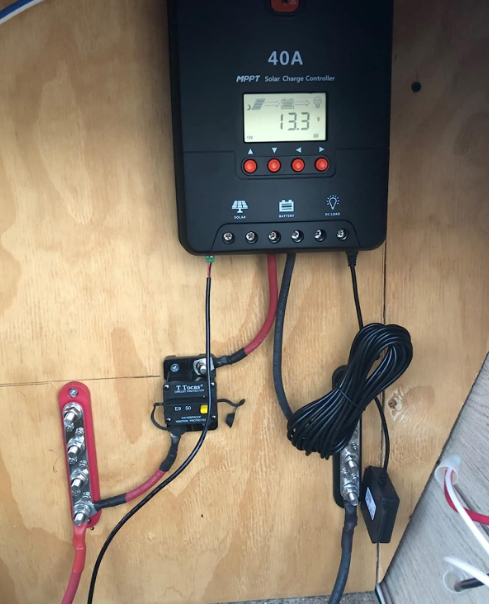

Installed in travel trailer for solar addition. Good size power distribution bar for small set-up. Reduces connections on battery.

L
Lee.Wireless

Product was used to rewire boat after water damage from Hurricane Ian. Super product for the job.
