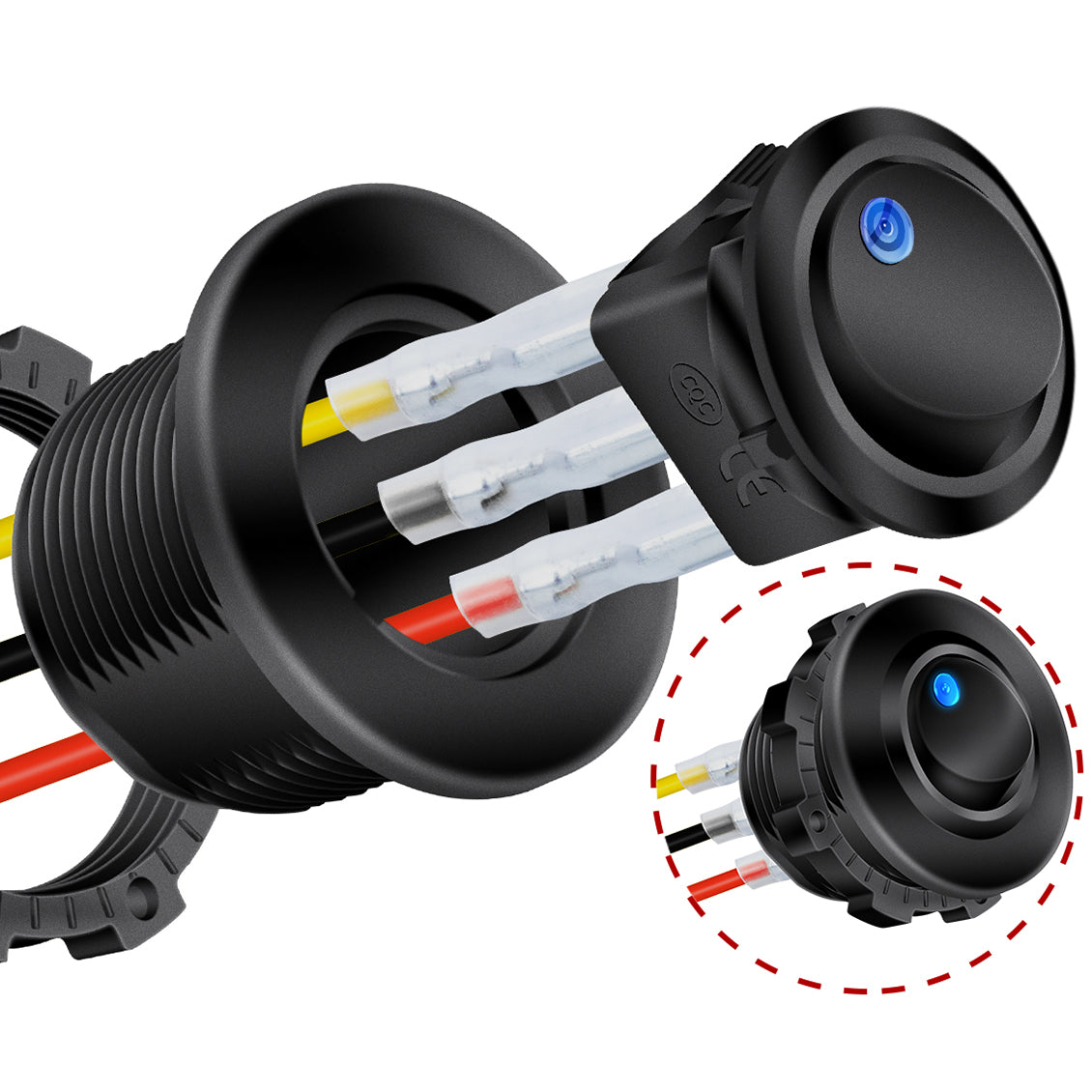

DS1825+KCD1-8-101EN Blue 20A 12VDC ON-OFF SPST Dot Light Round Rocker Switch

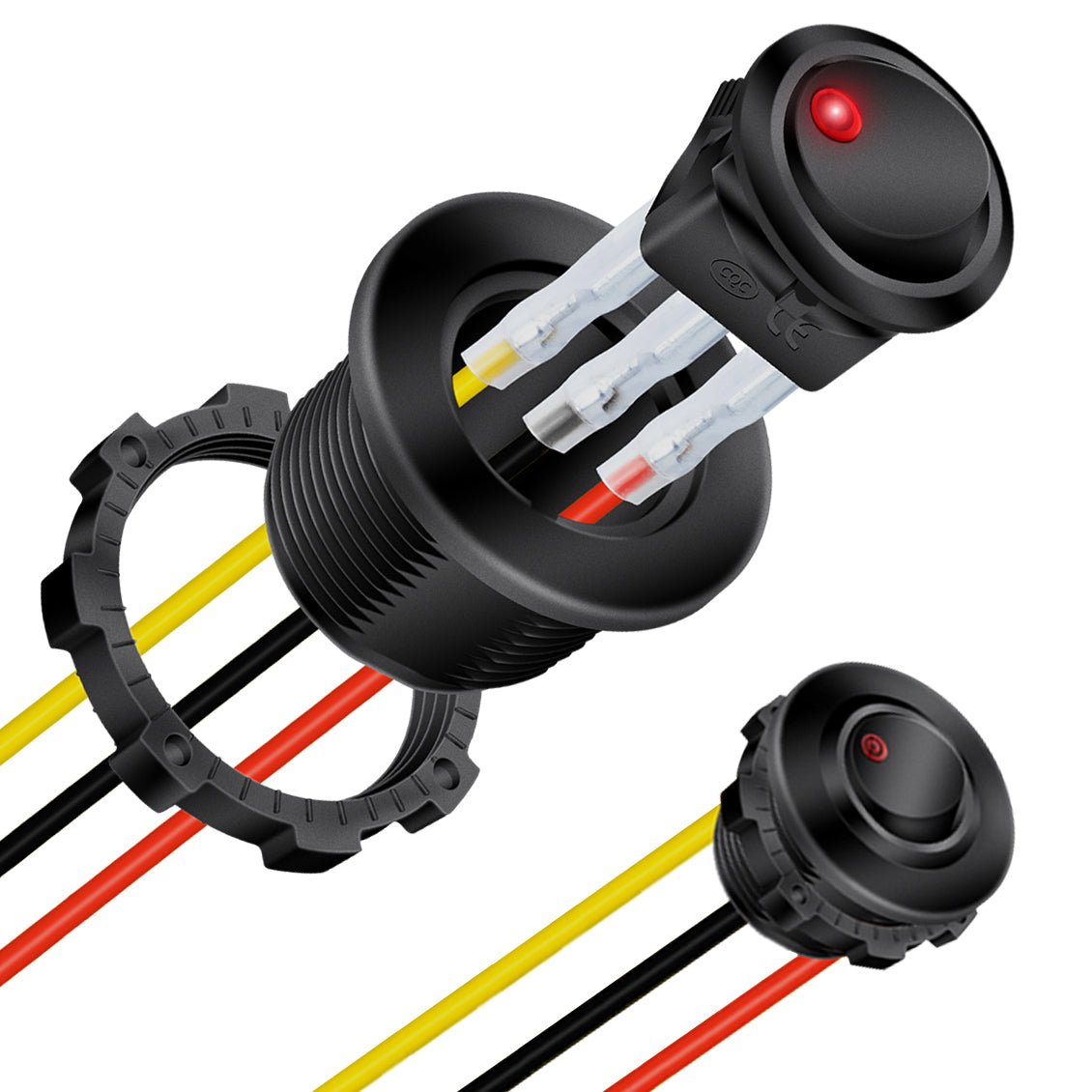

DS1825+KCD1-8-101EN Red 20A 12VDC ON-OFF SPST Dot Light Round Rocker Switch

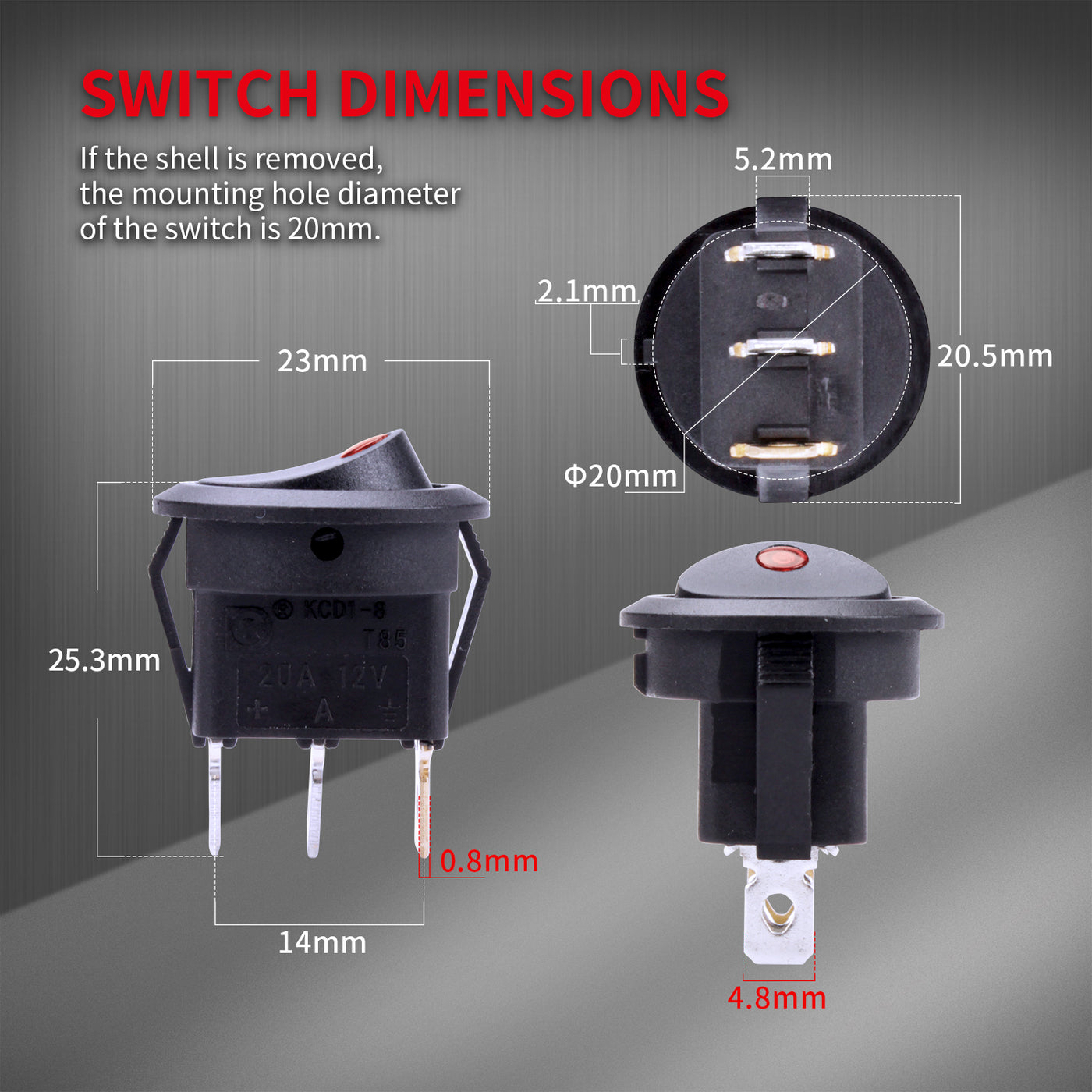

DS1825+KCD1-8-101EN 20A 12VDC Dot Light Round Rocker Switch Dimension

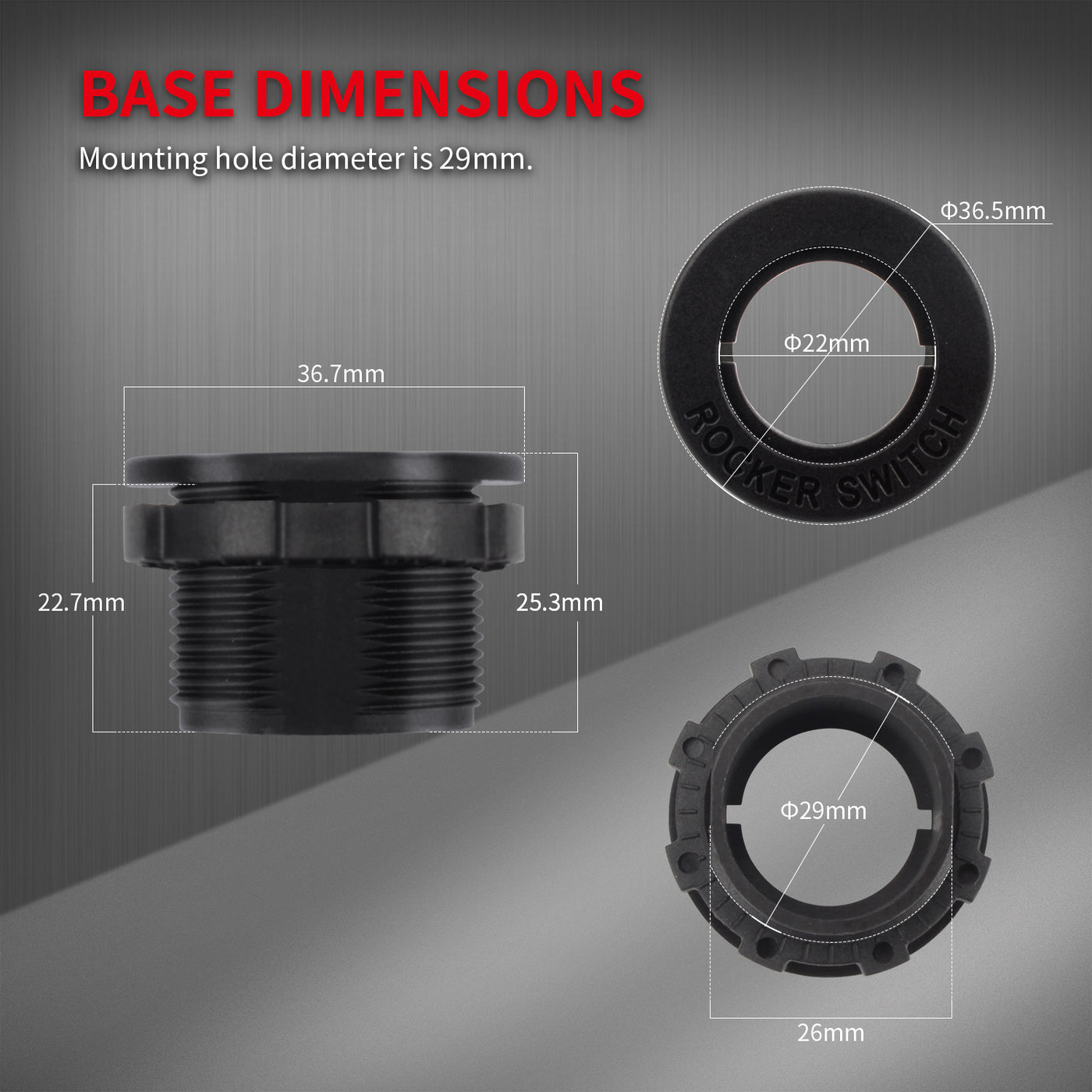

DS1825+KCD1-8-101EN 20A 12VDC Dot Light Round Rocker Switch Shell Size
DS1825+KCD1-8-101EN 20A 12VDC ON-OFF Round Rocker Switch

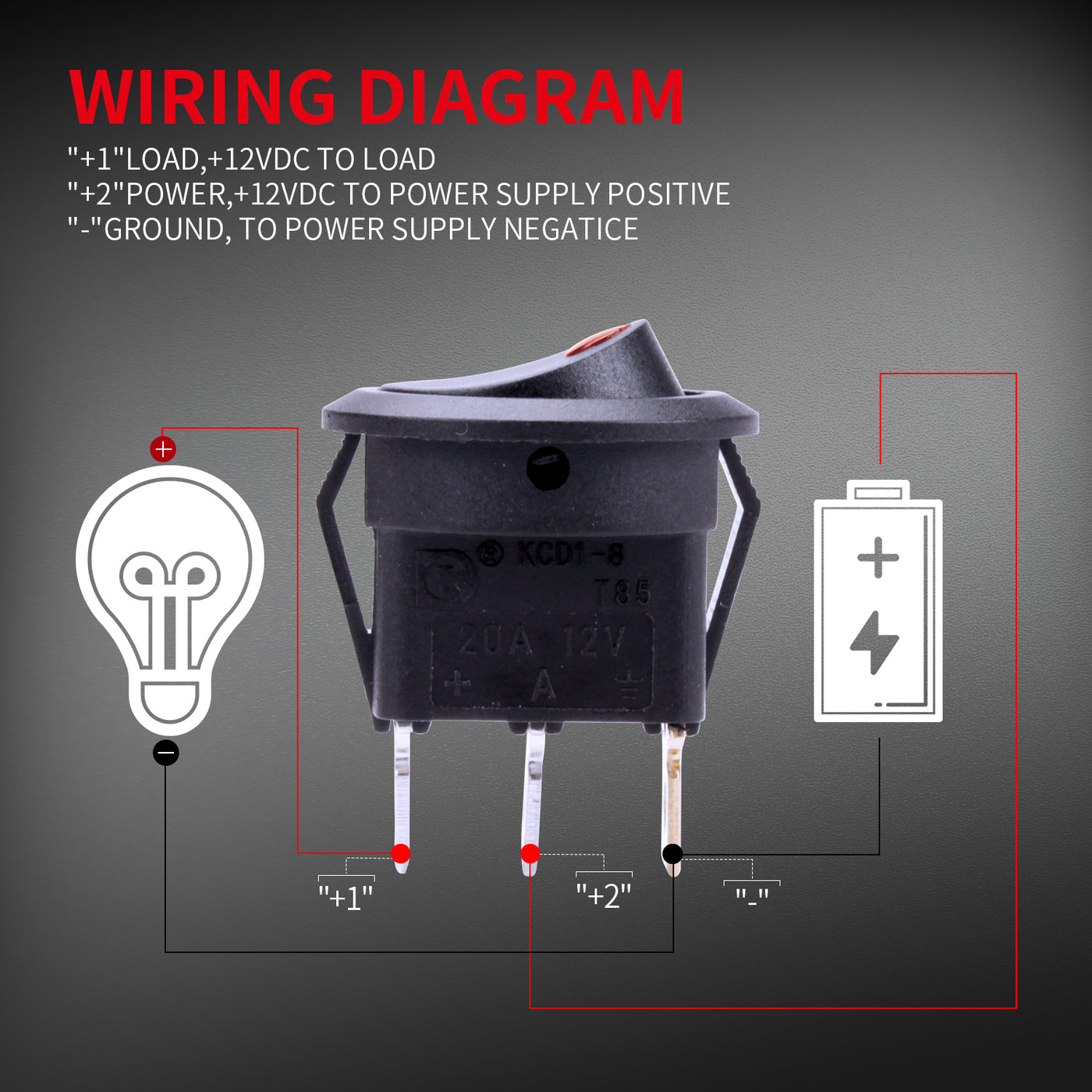

DS1825+KCD1-8-101EN 20A 12VDC Dot Light Round Rocker Switch Wiring Diagram

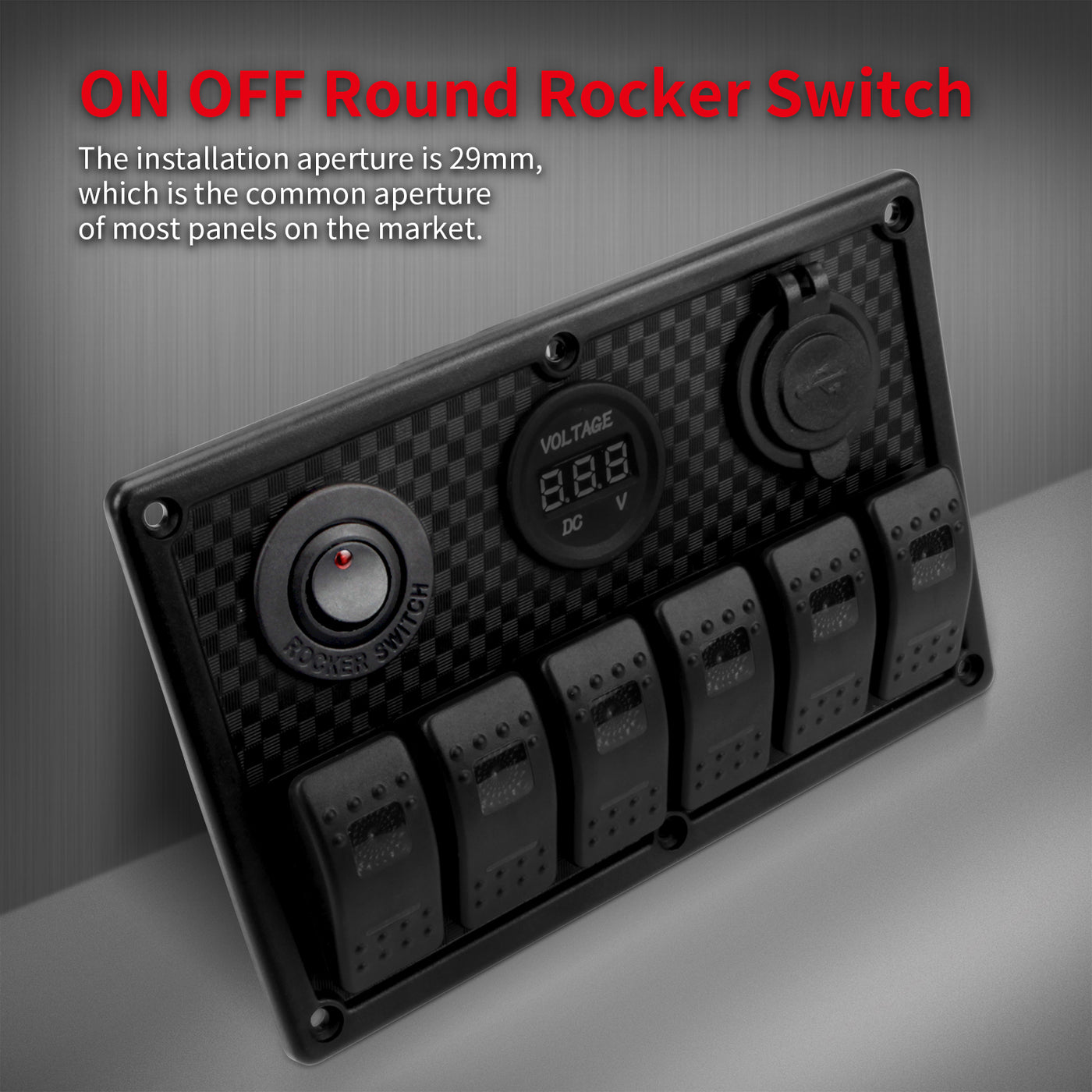

DS1825+KCD1-8-101EN 20A 12VDC Dot Light Round Rocker Switch Application

2 Sets 20A 12VDC ON-OFF SPST Dot Light Round Rocker Switch with Shell

Preço normal$8.99
/
Envio calculado na finalização da compra.

LED Color

Este site está protegido pela Política de privacidade da reCAPTCHA e da Google e aplicam-se os Termos de serviço das mesmas.

  • Descriptions
  • Technical Data Sheet
  • Shipping & Returns
  • Reviews

Descriptions

About this item

【Distinctive LED Design】- These round rocker switches come equipped with a discrete embedded dot LED light, available in a striking blue hue. The LED indicator illuminates when the switch is in the 'ON' position, providing clear visual feedback.

【Quality Materials】- The round rocker switch shell is constructed from durable nylon 66, ensuring longevity and resilience. The terminal, made from brass and silver-plated, further enhances its robust build.

【Efficient Functionality】- Featuring a 3-pin configuration and SPST (single pole single throw) design, these round rocker switches are user-friendly, allowing for easy toggling between 'ON' and 'OFF' states. They boast a substantial rating of 20A at 12VDC.

【Simple Installation】- With a mounting hole size of 29mm (approximately 1.14 inches), these round rocker switches are hassle-free to install. If the shell is removed, the mounting hole size reduces to 20mm (about 0.79 inches), offering flexibility in installation.

【Wide Application】- These 12V round rocker switches find utility in various settings, including automotive, race cars, RVs, marine vessels, heavy-duty trucks, off-road vehicles, ATVs, and any equipment operating on a 12V power source. Their versatility makes them suitable for a multitude of applications.

What’s in the package

2 x Rocker Switch

2 x Housing

2 x Wire Sets ( 3 Wires)

Spec

Part NO DS1825+KCD1-8-101EN
Brand: DAIER
Rating: 20A 12VDC;10A 24VDC
Mounting Size: 29mm
Function: ON-OFF
Contact Type: SPST
Terminal: 3 Pins
Connector Type: ‎Quick Connect(4.8x0.8mm)
Wire Length: 3x100mm
Wire Size: 18AWG
LED Type: Dot Light
LED Voltage: 12V
LED Color: Blue/Red/Green
Housing Color: Black
Material: Nylon 66+Brass Silver Plated
Packing Include: 2 x Rocker Switch
2 x Housing
2 x Wire Sets ( 3 Wires)
