30A 12Volt Heavy Duty ON OFF SPST 2 Pin Toggle Switch with Boot Cover
30A 12Volt Heavy Duty ON OFF SPST 2 Pin Toggle Switch with Boot Cover
30A 12Volt Heavy Duty ON OFF SPST 2 Pin Toggle Switch with Boot Cover
30A 12Volt Heavy Duty ON OFF SPST 2 Pin Toggle Switch with Boot Cover
30A 12Volt Heavy Duty ON OFF SPST 2 Pin Toggle Switch with Boot Cover
30A 12Volt Heavy Duty ON OFF SPST 2 Pin Toggle Switch with Boot Cover

30A 12Volt Heavy Duty ON OFF SPST 2 Pin Toggle Switch with Boot Cover

Preço normal$6.99
/
Envio calculado na finalização da compra.

Este site está protegido pela Política de privacidade da reCAPTCHA e da Google e aplicam-se os Termos de serviço das mesmas.

  • Descriptions
  • Technical Data Sheet
  • Shipping & Returns
  • Reviews

Descriptions

About this item

Package includes 2 Switches

High-Amperage Capacity】- This robust toggle switch is built to handle high-current electrical systems, offering a rating of 30A at 12VDC. It's also suitable for a range of AC applications with a rating of 15A at 250VAC and 20A at 125VAC. The simple, yet reliable, two-pin SPST (Single Pole Single Throw) design ensures effortless ON/OFF control for various devices and applications.

Durable Construction】- A robust metal and bakelite housing provide exceptional durability, ensuring this toggle switch can withstand the rigors of demanding environments. High-quality brass construction for the shaft and bracket enhances conductivity and resists wear, while the sleek black finish adds a touch of sophistication to any dashboard or control panel.

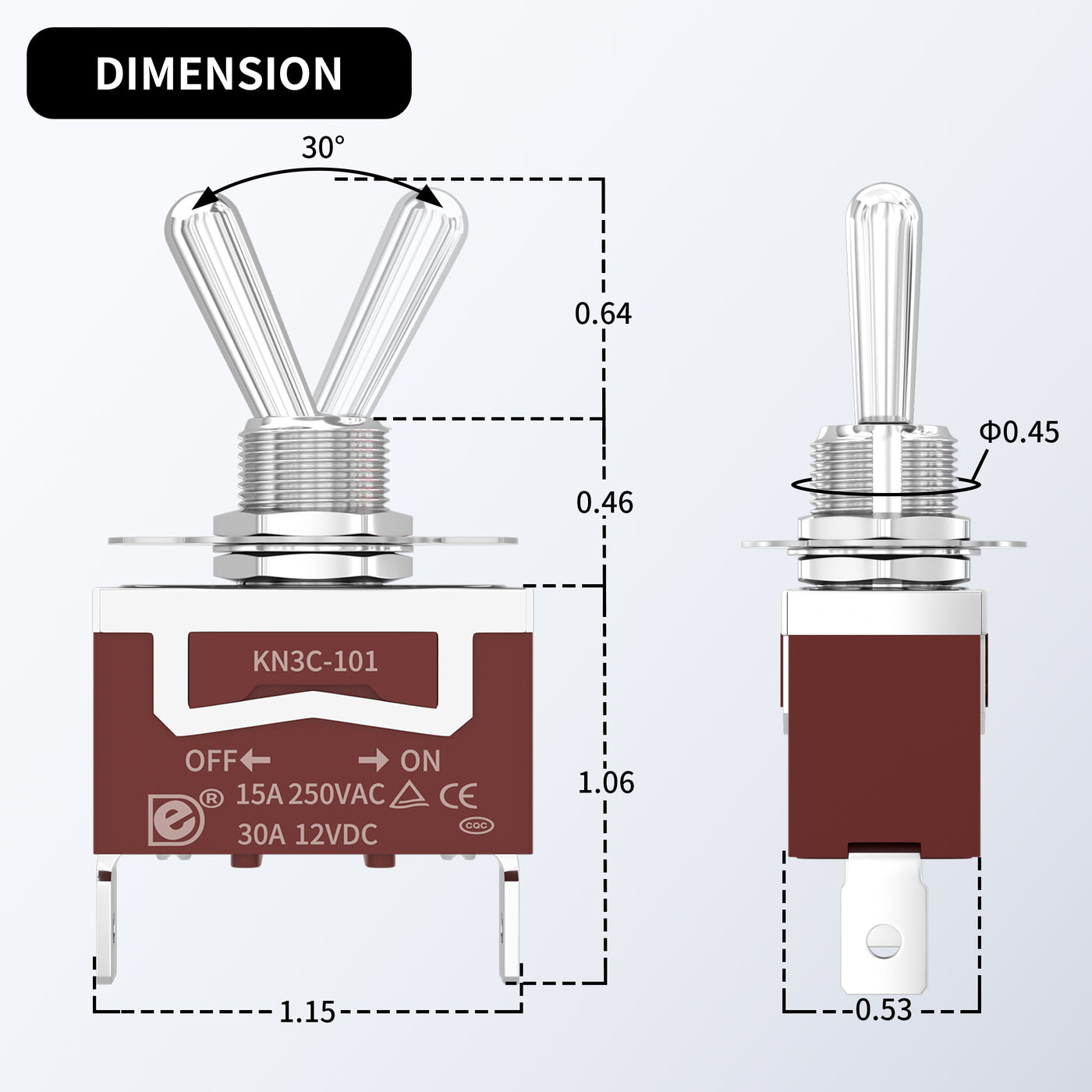

Easy Installation】 - This toggle switch installs quickly and easily, featuring a standard 0.48-inch (12.2mm) mounting hole size for compatibility with a wide range of panels and dashboards. The included #250 spade terminals (6.35 x 0.8mm) ensure quick and secure wire connections for a hassle-free installation process.

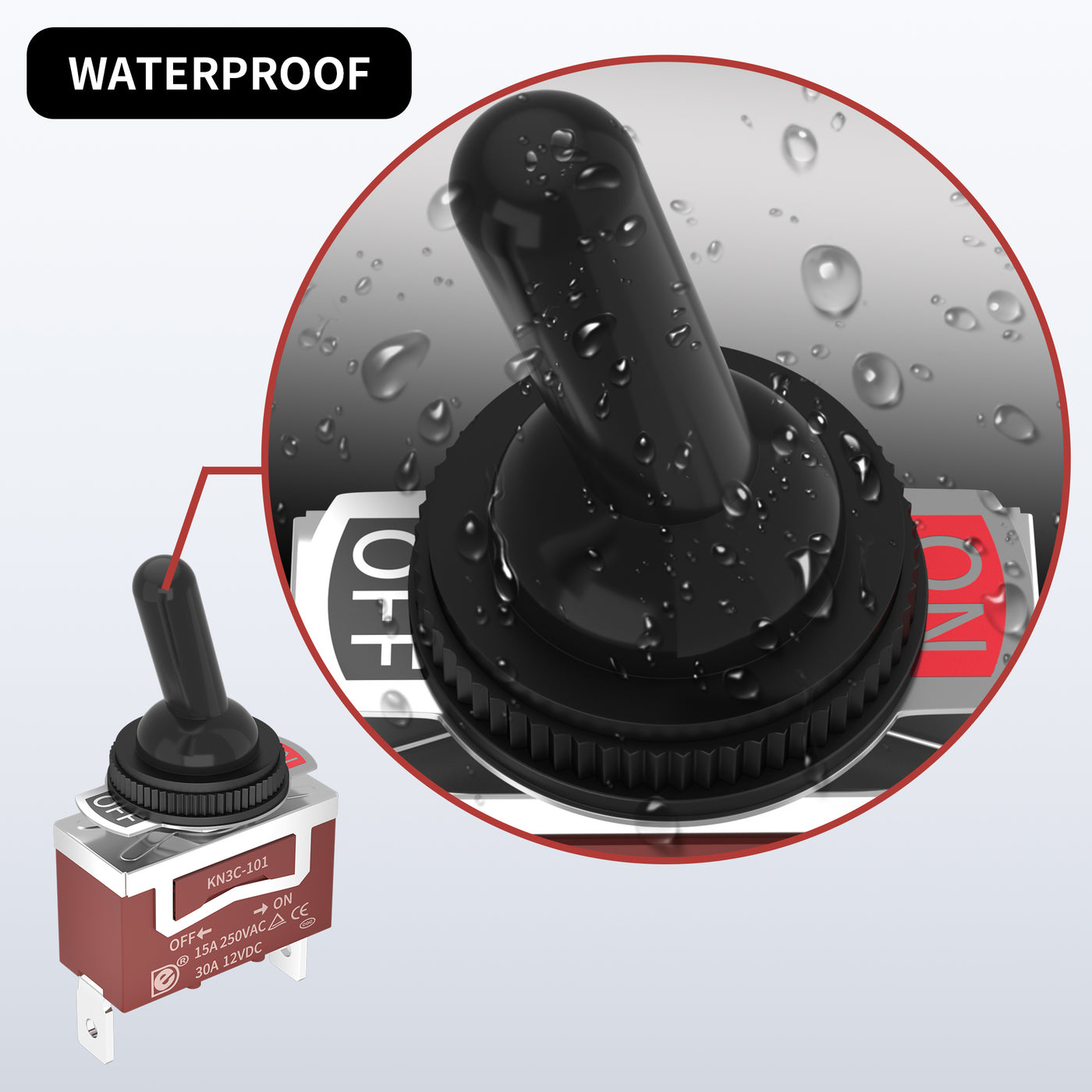

Weatherproof Design】 - The elements are no match for this weatherproof toggle switch. An included M12 x 0.75 waterproof boot cap cover forms a tight seal, effectively protecting the switch from dust, moisture, and other environmental factors. This added protection ensures long-lasting performance and reliable operation, even in the harshest conditions.

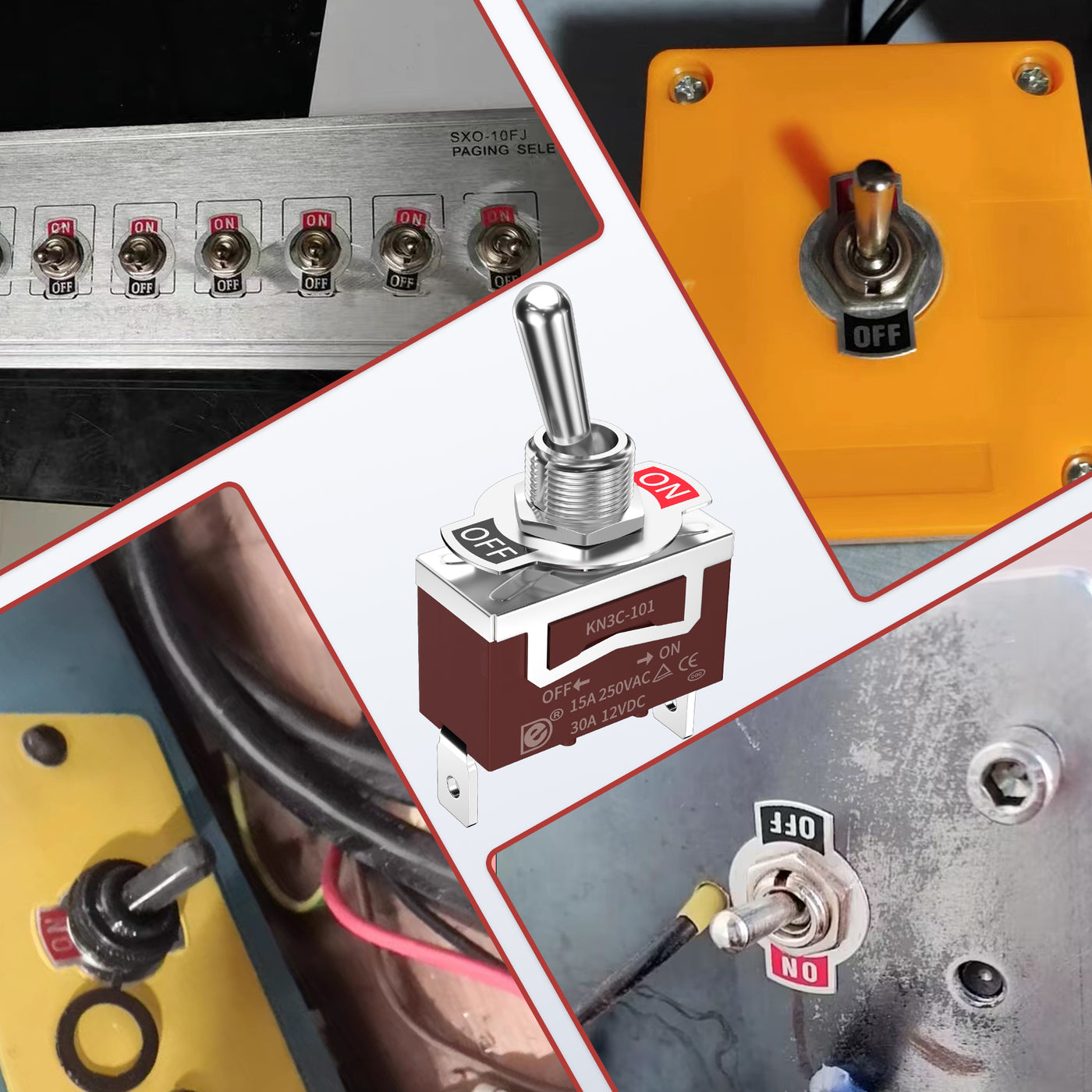

Versatile Applications】 - This two-way toggle switch is an ideal choice for a wide range of vehicles and applications. Its durable construction and weatherproof design make it perfect for use in cars, boats, motorcycles, RVs, ATVs, trucks, golf carts, and any other application that demands a reliable and robust ON/OFF switch.

Package Includes

2 x 2 Way Toggle Switch

2 x Waterproof Boot Cap

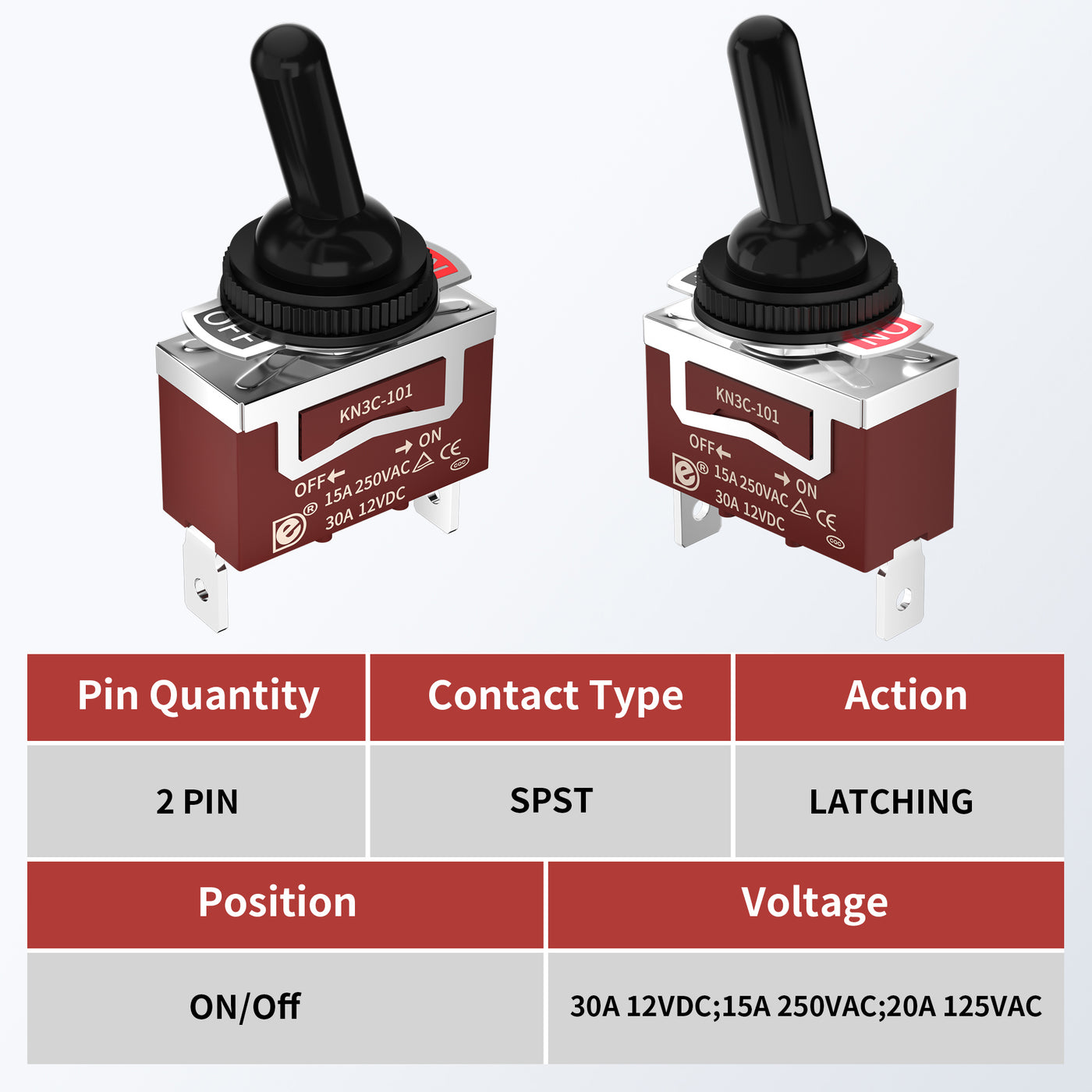

Spec

Part NO KN3C-101AP+WPC-06
Rating: 30A 12V DC ; 20A 125VAC ; 15A 250VAC
Material: Bakelite, Metal
Contact Material: Silver
Panel Cut-Out Size: 12mm
Function: ON-OFF SPST
Terminal: 2 Pins
Connector Type ‎Quick Connect(6.3x0.8mm)
Cover Thread: M12X0.75mm
Cover Color: Black
Contact Resistance: ≤50mΩ
Insulated Resistance: ≥100MΩ
Dielectric Strength: 1 Minute 1500V AC
Operating Temperature: -25℃~+85℃
Electrical Life: ≥10,000 Cycles

Details

This toggle switch is made of high quality industrial plastic and metal for long-lasting performance. The sturdy construction ensures reliable operation and a satisfying tactile feel every time you switch.

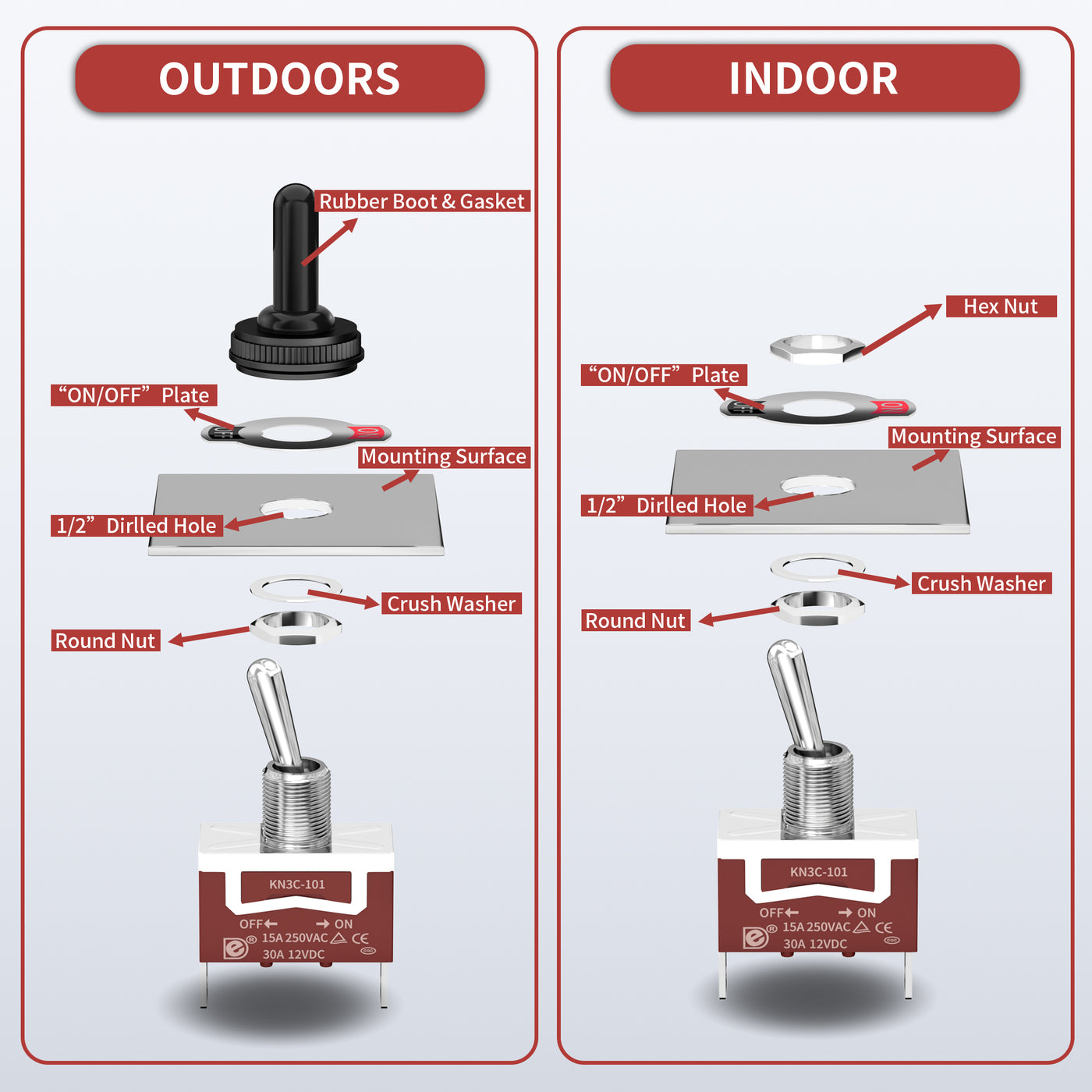

The installation process is easy thanks to the switch's precise threaded design. This design ensures a safe and secure installation, minimizing installation time and increasing convenience.

Copper terminals have excellent electrical conductivity and corrosion resistance for reliable connections, even in harsh environments.

Protect the switch with the waterproof silicone cap to keep it safe from water, dirt, and corrosion, suitable for indoor and outdoor use.
