50A Aluminum Alloy SPDT ON OFF ON 3 Position Toggle Switch

Preço normal$6.99
/
Envio calculado na finalização da compra.

Este site está protegido pela Política de privacidade da reCAPTCHA e da Google e aplicam-se os Termos de serviço das mesmas.

  • Descriptions
  • Technical Data Sheet
  • Shipping & Returns
  • Reviews

Descriptions

About this item

【Rating】- This marine toggle switch is heavy duty, can reach 50 Amp 12V DC.

【Material】- This heavy duty toggle switch is made by aluminum and copper,  with a sturdy aluminum alloy shell, making it suitable for various complex environments. The thickened terminal can withstand a large current of 50A.

【Function】 - 50A 12V DC toggle switch with 3 pin, SPDT design (single pole double throw), designed with rocker style, easy to turn ON/ OFF/ON.

【Size】 - Mounting hole size is 0.47inches (12MM).Each of the terminals has a machine screw for quick connections, but also easy to be soldered.

【Application】 -Automotive ON OFF ON 3 way toggle switch is widely applied to various additional electric equipment inside and outside the car, such as lights, chassis lamp, fog lamps, dome light etc.

Spec

Part NO R13-401-103
Rating: 50A 12VDC
Material: Aluminum, Copper
Finish Type: Chrome
Panel Cut-Out Size: 0.47 inches(12mm)
Function: ON-OFF-ON SPDT
Terminal: 3 Pins
Connector Type ‎Screw Terminal
Contact Resistance: ≤50mΩ
Insulated Resistance: ≥100MΩ
Operating Temperature: -25~+85
Electrical Life: ≥10,000 Cycles


Technical Data Sheet

Shipping & Returns

Shipping Policy (Full Shipping Details)

Standard Shipping: 7-15 business days.

Expedited Shipping: 3-7 business days (FedEx, DHL, or UPS).

Shipping costs vary by country and are shown at checkout.

PS: Shipping may be delayed during holidays and vacations. We apologize for any inconvenience and appreciate your patience.

Refunds & Returns

Refund Arrival Time: 3-5 working days

Refund Path: return to the original path

Refund Contact Information: angel@chinadaier.com

Reviews

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
s
sarah

Liked the quality liked the screw connectors. Powers on in the up and down location. Off is center. Not a three way switch in the terms of a traditional two switch configuration. Meaning that you have either power on in the up location or in the down location you can't turn on a device/light at one location and off at the other and then back on at the former location not that kind of 3way switch. Just two on location. A very good switch and exactly what I wanted high quality and I'm very happy.

P
PJ‘s mom

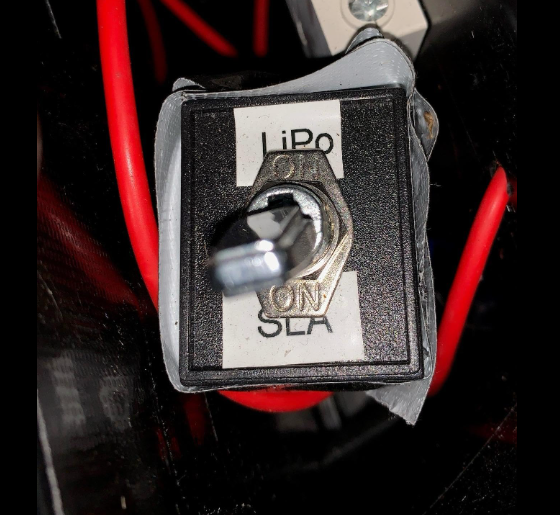

I use this switch to switch between a 48 Volt Sealed Lead Acid battery bank and a 48 Volt LiFePo4 battery bank on the same scooter. About four months later with trouble-free operation and I couldn't be happier.

By the way: This switch is meant for low voltage, high amperage, DC applications. Nothing from the manufacturer suggests otherwise. Anyone using this for high voltage AC applications deserves to get shocked!
I use this switch to switch between a 48 Volt Sealed Lead Acid battery bank and a 48 Volt LiFePo4 battery bank on the same scooter. About four months later with trouble-free operation and I couldn't be happier.

By the way: This switch is meant for low voltage, high amperage, DC applications. Nothing from the manufacturer suggests otherwise. Anyone using this for high voltage AC applications deserves to get shocked!

L
L. Hawkins

Nice and sturdy. Full hardware included. Use ring lugs for your wires to get full benefits of this switch.

J
Joanna

These are very solid 50 amp switches with very distinctive on off on positions. Very solid screw on terminals, no spade terminals. Nice weight. Do not buy light weight 20 amp switches, I had one explode on me and left me with no headlights going 55 mph on I-10. Get these, great value for the money.

H
Hana

Replaced my switches on the boat these are well built sturdy and have a nice thumb switch. Switch has two on location one up and one down off in middle location. Connectors are screw type. Very happy
