1000N/220lb 4" Stroke 14mm/s 12V Linear Actuator with Reverse Polarity Switch Controller
1000N/220lb 4" Stroke 14mm/s 12V Linear Actuator with Reverse Polarity Switch Controller
1000N/220lb 4" Stroke 14mm/s 12V Linear Actuator with Reverse Polarity Switch Controller
1000N/220lb 4" Stroke 14mm/s 12V Linear Actuator with Reverse Polarity Switch Controller
1000N/220lb 4" Stroke 14mm/s 12V Linear Actuator with Reverse Polarity Switch Controller
1000N/220lb 4" Stroke 14mm/s 12V Linear Actuator with Reverse Polarity Switch Controller

1000N/220lb 4" Stroke 14mm/s 12V Linear Actuator with Reverse Polarity Switch Controller

Normaler Preis$34.99
/

Diese Website ist durch reCAPTCHA geschützt und es gelten die allgemeinen Geschäftsbedingungen und Datenschutzbestimmungen von Google.

  • Descriptions
  • Technical Data Sheet
  • Shipping & Returns
  • Reviews

Descriptions

About this item

Powerful and Durable Performance】- This linear actuator delivers a powerful push-pull force of 1000N (220 lbs) and a 4-inch (100mm) stroke length. It is constructed with high-quality aluminum alloy, ensuring exceptional durability and reliable operation for demanding applications.

Fast and Efficient Actuation】- This high-speed linear actuator operates at a travel speed of 14mm/s, allowing for quick and efficient movement. The actuator tackles demanding tasks with ease, making it ideal for projects that require speed and precision.

Quiet and Safe Operation】- This 12V actuator features an upgraded low-noise design, operating at under 50dB for smooth and quiet movement. Built-in limit switches and safety locks prevent overruns, ensuring safe and reliable operation for users.

Versatile and Weather-Resistant】- With an IP54 waterproof rating, this linear actuator can be used in various environments, both indoors and outdoors. Its versatility makes it suitable for a wide range of applications, from furniture and medical equipment to automation projects and agricultural machinery.

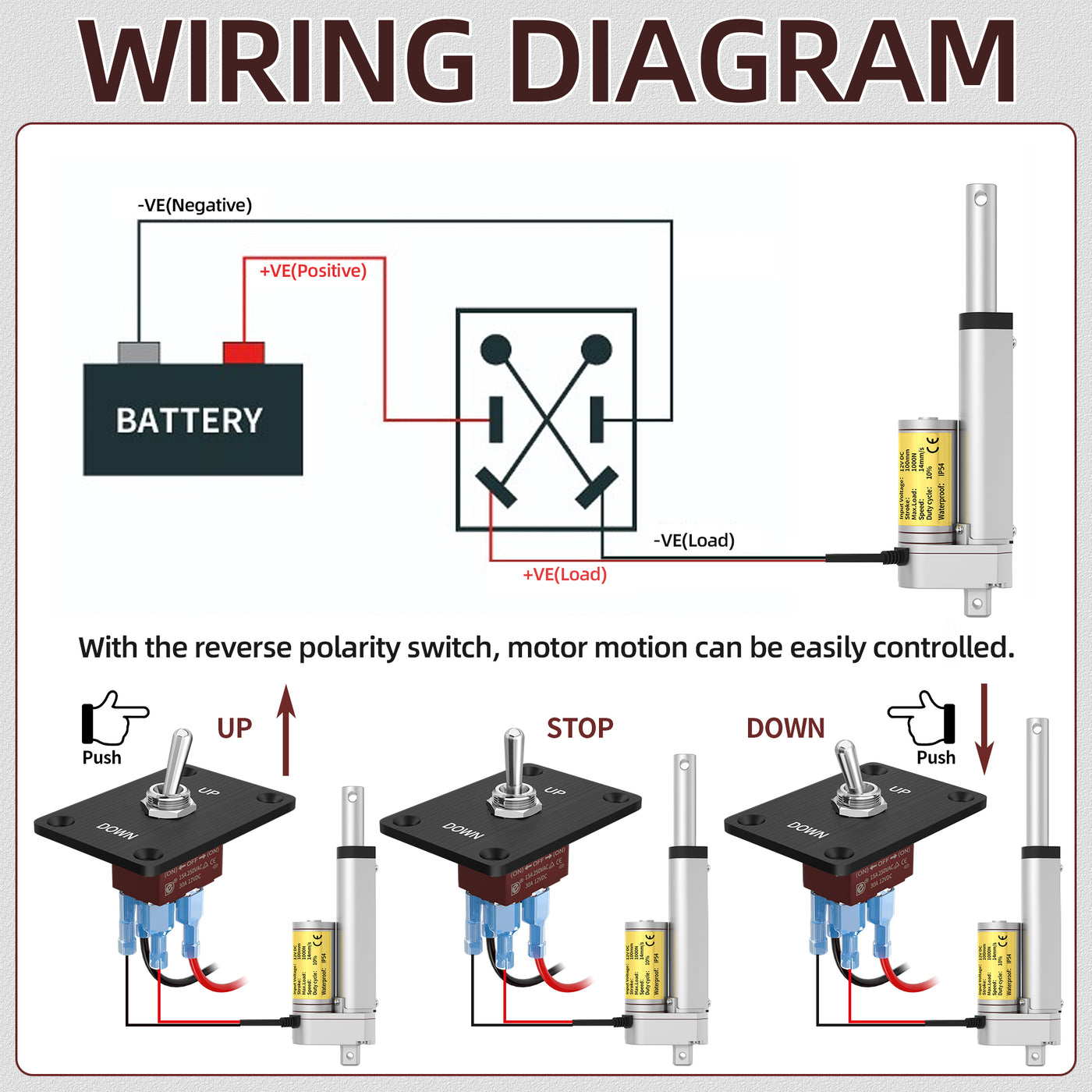

Simplified Installation and Control】- The electric actuator comes complete with a mounting bracket for secure installation and a polarity reversing switch for easy control. This convenient package simplifies the setup process, allowing users to quickly integrate the actuator into their projects.

What’s in the package:

1×12V Linear Actuator

2×Mounting Bracket Sets

1×Momentary Toggle Switch Panel

4×Insulated Terminals

4×Screws

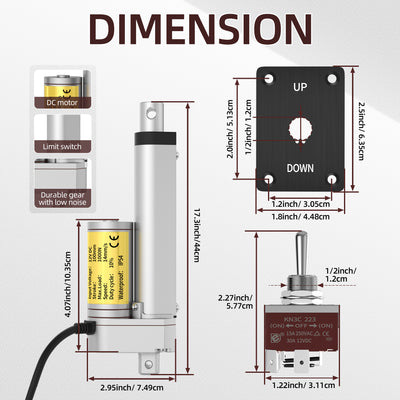

Spec

Part NO LA03-12-A1-280-100-C11-1000N
Voltage 12VDC
Stroke 100mm
Max Load 1000N
Speed 14mm/s
Noise Level Below 50dB
Duty Cycle 0.1
Switch Function (ON)-OFF-(ON) Momentary
Switch Terminal 4 Pins
