Descriptions
Product Features

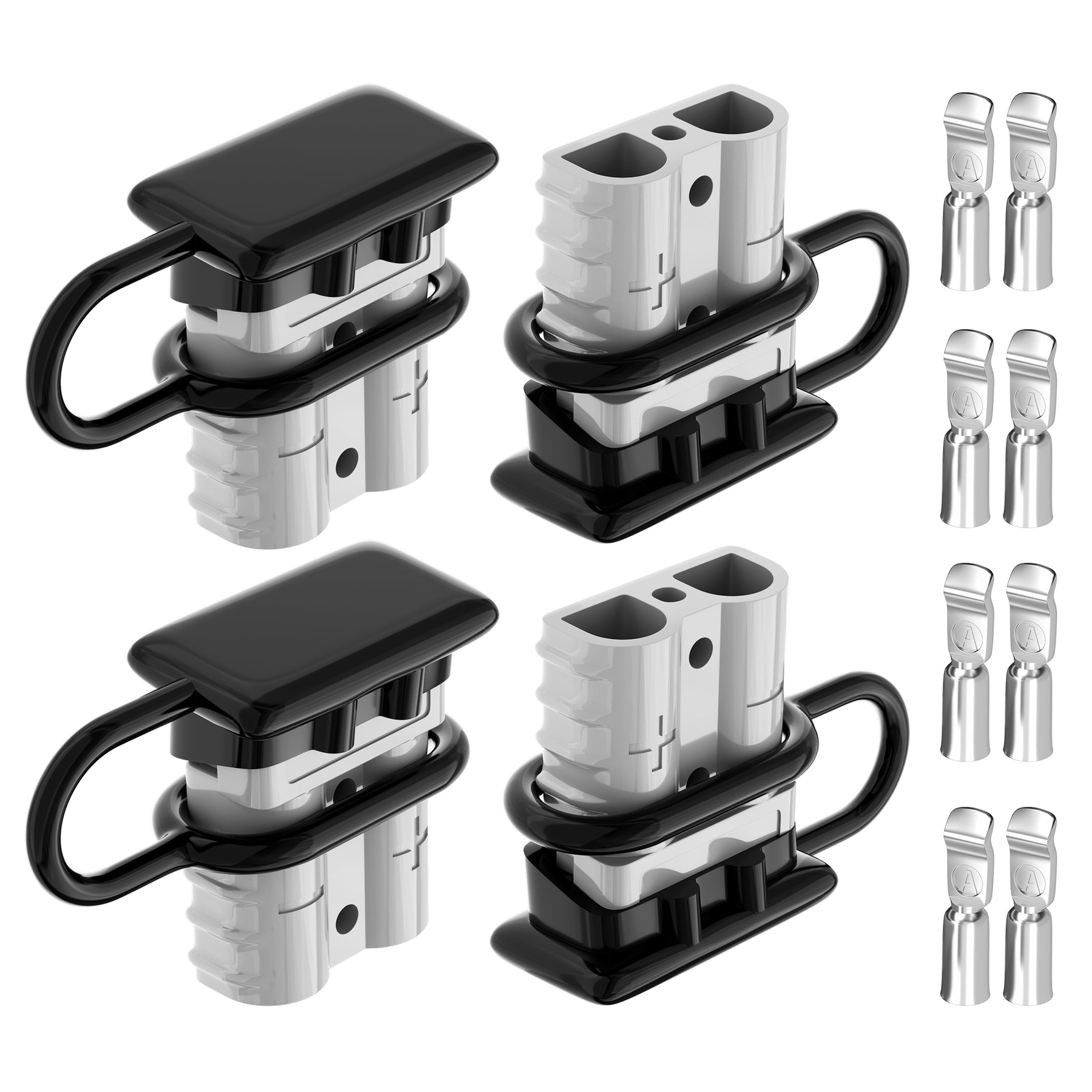

Four-Connector Project Set: The kit includes four matching 50A housings and eight cable contacts. The quantity creates two complete connector pairs for separate circuits or equipment leads.
6 to 12 AWG Wire Range: The contacts accept 6 AWG 8 AWG 10 AWG and 12 AWG conductors. The multi-gauge range supports several common cable sizes without changing the connector housing.
50A 600V Rating: Each connector carries a maximum current rating of 50A and a maximum voltage rating of 600V. The stated limits make the set suitable for compatible battery solar winch RV and utility wiring.

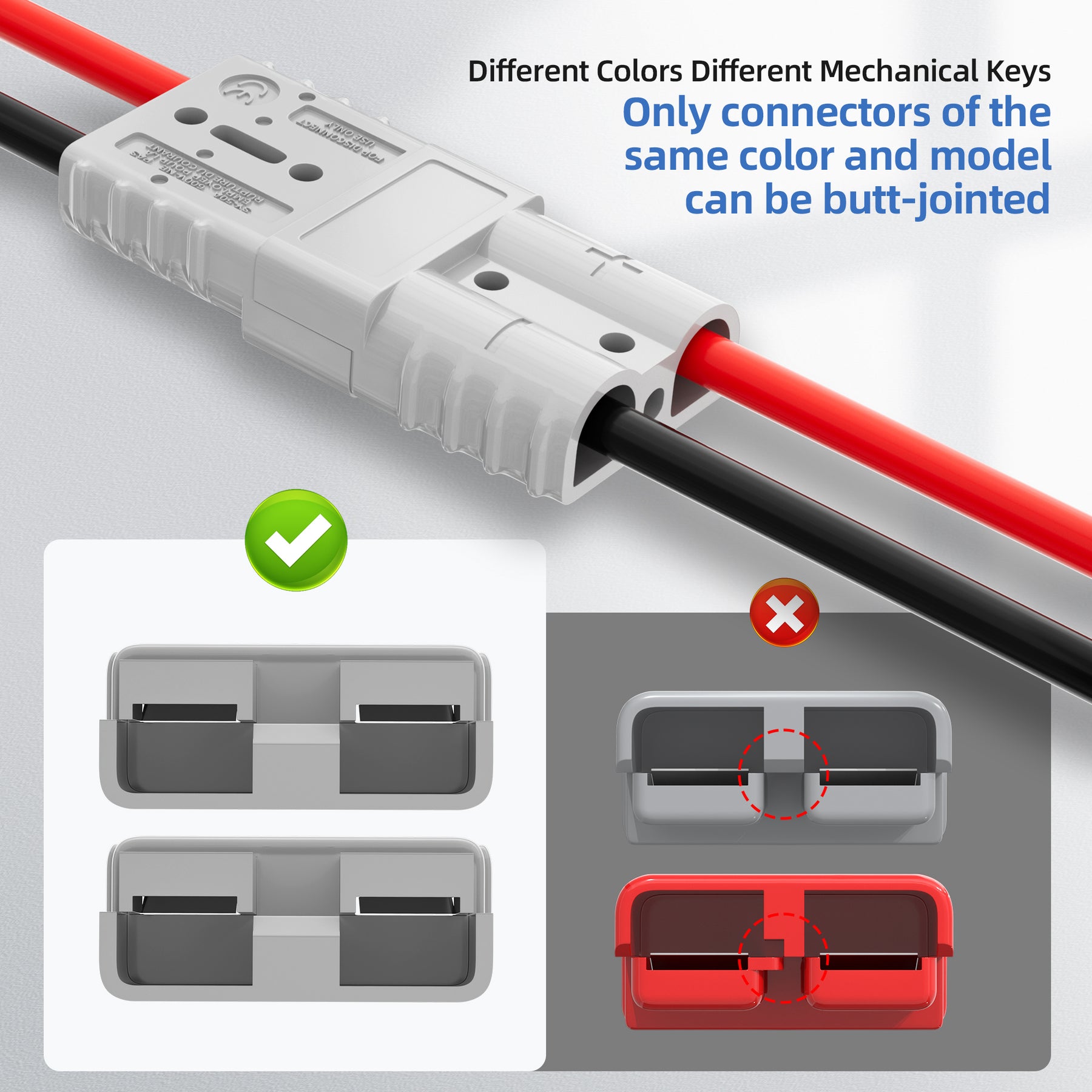

Keyed Same-Color Mating: The grey mechanical key mates only with the same connector model and color. The keyed format helps keep unlike circuits or connector families separated.

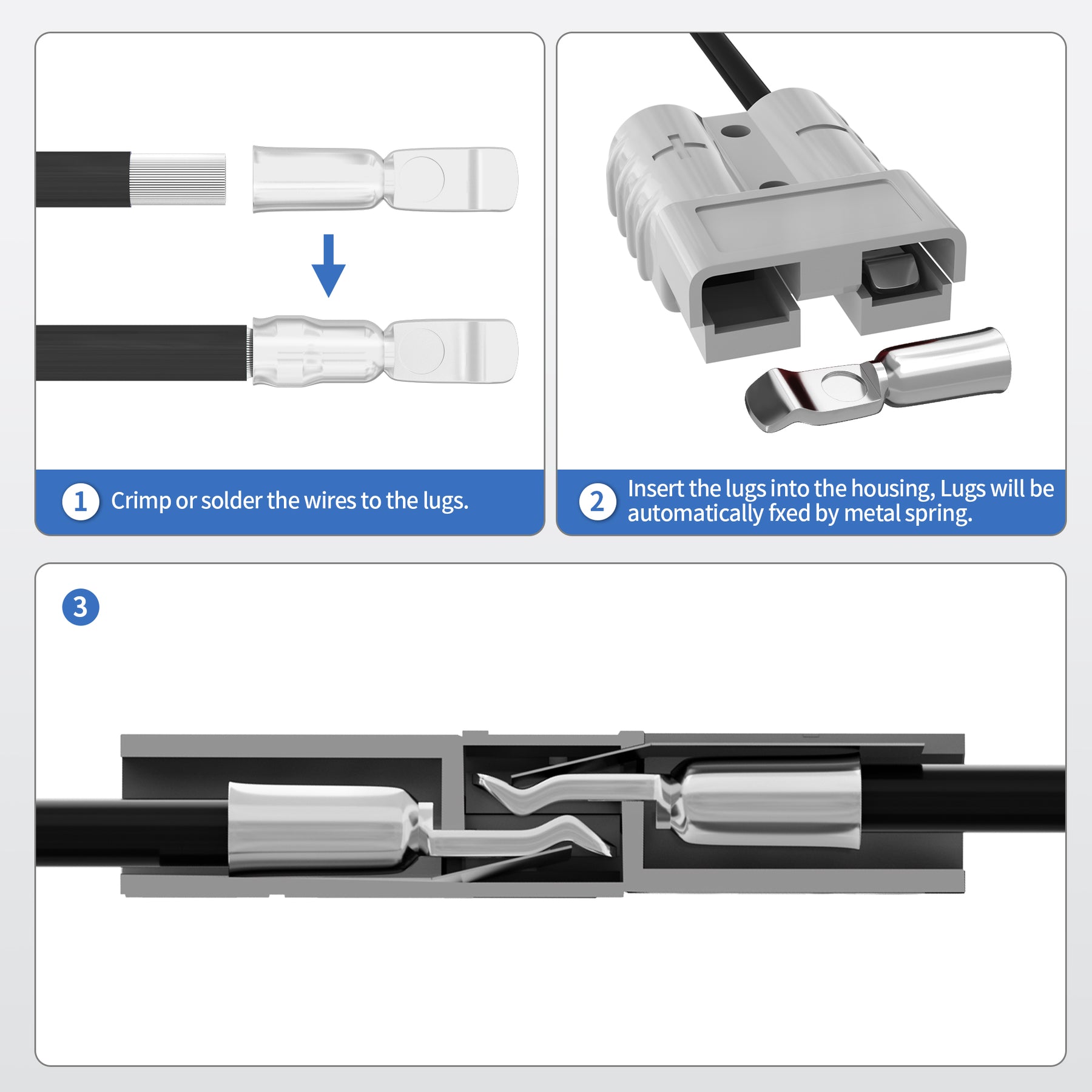

Secure Snap-In Contacts: The crimped or soldered contacts lock inside the housing after insertion. Correct seating prevents loose terminals from closing the connector gap or interrupting the power path.

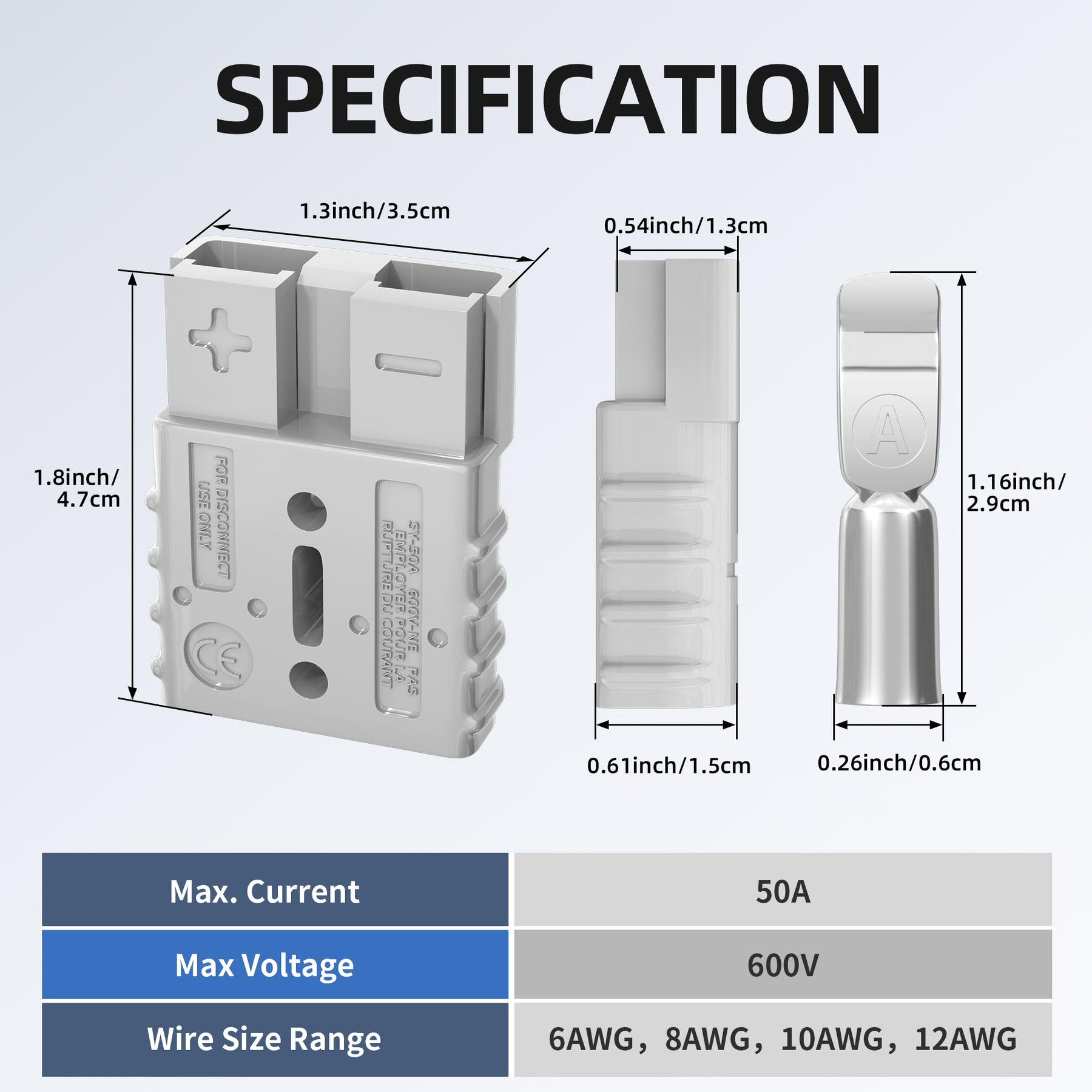

Technical Specifications
| Model | AP-50-4-GREY |
| Product Type | Quick disconnect connector kit |
| Package Quantity | 4 housings / 8 contacts / 2 connector pairs |
| Electrical Rating | 50A maximum / 600V maximum |
| Wire Sizes | 6 AWG 8 AWG 10 AWG 12 AWG |
| Housing Key | Grey / same model and color only |
| Housing Size | 1.87 x 1.38 x 0.54 in |
| Contact Size | 1.16 x 0.26 in |
| Operating Temperature | -13 to 221 deg F |
| Connection Method | Crimp or solder contacts then insert |
