LW26-63-3 3 Position Cam Rotary Changeover Selector Switch
LW26-63-3 3 Position Changeover Selector Switch Specification
LW26-63-3 3 Position Changeover Selector Switch Installation

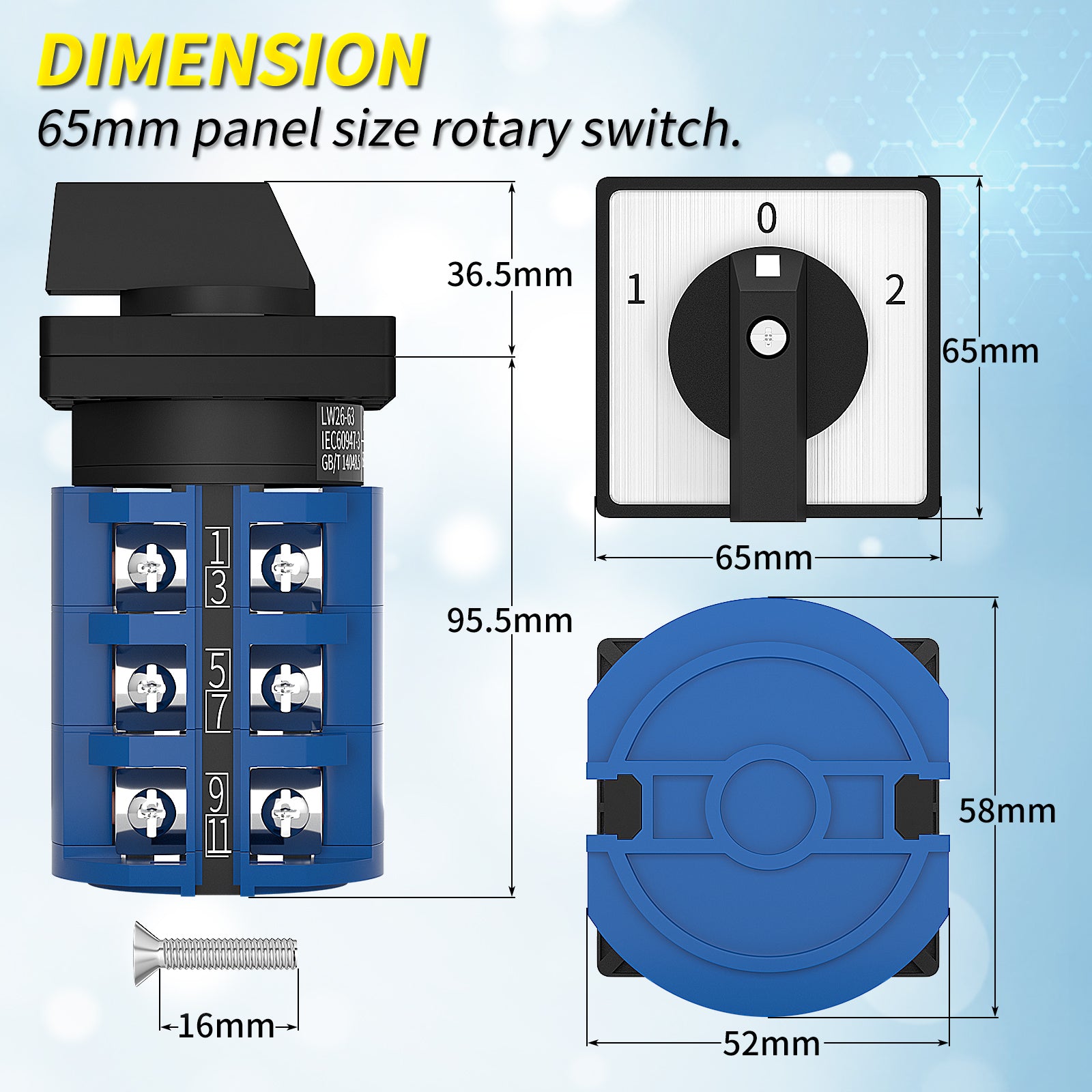

LW26-63-3 3 Position Changeover Selector Switch Dimension
LW26-63-3 3 Position Changeover Selector Switch with Contact and Terminals
LW26-63-3 3 Position Changeover Selector Switch Connection Instruction

63A 440V 3 Position 12 Terminals Cam Rotary Changeover Selector Switch

Regular price$19.99
Shipping calculated at checkout.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

  • Descriptions
  • Technical Data Sheet
  • Shipping & Returns
  • Reviews


About this item

Switch Specifications】- This rotary switch offers a 3-position design (ON/OFF/ON or 1-0-2) with 12 terminals. It operates effectively with Ui: 690V and Ith: 63A, making it suitable for a range of electrical tasks. Its panel size is 65 x 65 mm, with overall dimensions of 65 mm x 65 mm x 132 mm. The highly conductive silver alloy contacts and copper terminals ensure superior performance.

Premium Copper Components】- Featuring high-quality copper parts with a silver alloy point, this side marker light boasts exceptional stability and heat conductivity. This design minimizes the risk of sliding and enhances the longevity and performance of the changeover switch.

Durable Material】- Crafted from flame-retardant PC material, this side marker light exhibits excellent insulation and high-temperature resistance. Its flexible handle conversion and easily accessible rotary selector simplify control. The included square plate and screws facilitate straightforward mounting.

【Technical Excellence】- With 3 positions (1-0-2) and 12 terminals, this latching type switch is a versatile component. It boasts a Ui rating of 690V and Ith of 63A, as highlighted in Image, which illustrates the terminal connections for different positions. It's essential to consult the provided wiring diagram for reference.

【Versatile Applications】- This side marker light is ideal for various electrical applications, including power switches, speed controls, and induction motors. It excels in facilitating control circuit conversions.

What’s in the package

1 x Changeover Selector Switch

4 x Mounting Screws


Part NO LW26-63/3
Type Cam Rotary Changeover Switch
Position 1-0-2, 3 Position
Current Rating 63A
Operating Voltage Ue: 440V AC Ui: 690V
Actuator Type 63A 3 Position Cam Rotary Changeover Switch
Contact Type Screw
Terminal Number 12 Terminals
Mounting Type Panel Mount
Panel Size 65 x 65 MM
Contact Material Silver Alloy
Waterproof Rate IP54
