Descriptions
Package Includes:
1 x Red Positive Bus Bar
1 x Black Negative Bus Bar
4 x Mounting Screws
About this item
Product Name - Bus bar terminal block 12v, these battery bus bar 12v will come in pairs, includes one positive bus bar (red) and one ground bus bar (black).
300A M8 / M10 Stud Busbar - This battery distribution block can handle max 300A continuous amperage at Max 300V AC or 48V DC voltage. Each battery terminal block includes - 6 x M8(5/16") / M10 (3/8")terminal studs.
Round Corner Base - This 12v bus bar is unique round corner base design, which makes the marine bus bar unique and special, looks more extraordinary compared with others.
Special Design Cover - The exposed area of two side of this 12v power distribution block cover allows 180° wire lug installation, can meet a variety kinds of install methods of end terminals.
Application - This 300A bus bar will have better performance in high current systems. The package includes one positive and one ground distribution block, suitable for automotive, car, marine boat, etc.
Spec
| Part NO | BB300-T6M10/M8-C |
| Connection Type | Red for Positive Black for Negative |
| Terminal Studs | 6 x M10 (3/8") / M8 (5/16") |
| Base & Cover Material | Nylon |
| Bus Material | Copper |
| Terminals Material | Stainless Steel |
| Max Voltage | 48V DC |
| Max Continuous Amperage | 300 AMP |
| Overall Dimension | 180mm x 38mm x 46mm (LxWxH) |
Shipping & Returns
Shipping Policy (Full Shipping Details)
Standard Shipping: 7-15 business days.
Expedited Shipping: 3-7 business days (FedEx, DHL, or UPS).
Shipping costs vary by country and are shown at checkout.
PS: Shipping may be delayed during holidays and vacations. We apologize for any inconvenience and appreciate your patience.
Refund Arrival Time: 3-5 working days
Refund Path: return to the original path
Refund Contact Information: angel@chinadaier.com
Reviews
Customer Reviews
Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
g
I ordered today and they were delivered the same day as promised. Solid construction with quite a hefty to them. I'm going to be using them to connect 4 Lifepo4 batteries to a charge controller and a 3000W inverter charger. 300A is over kill but better safe than sorry.
j
I think theses will will handle more power then the other cheaper ones out there
R

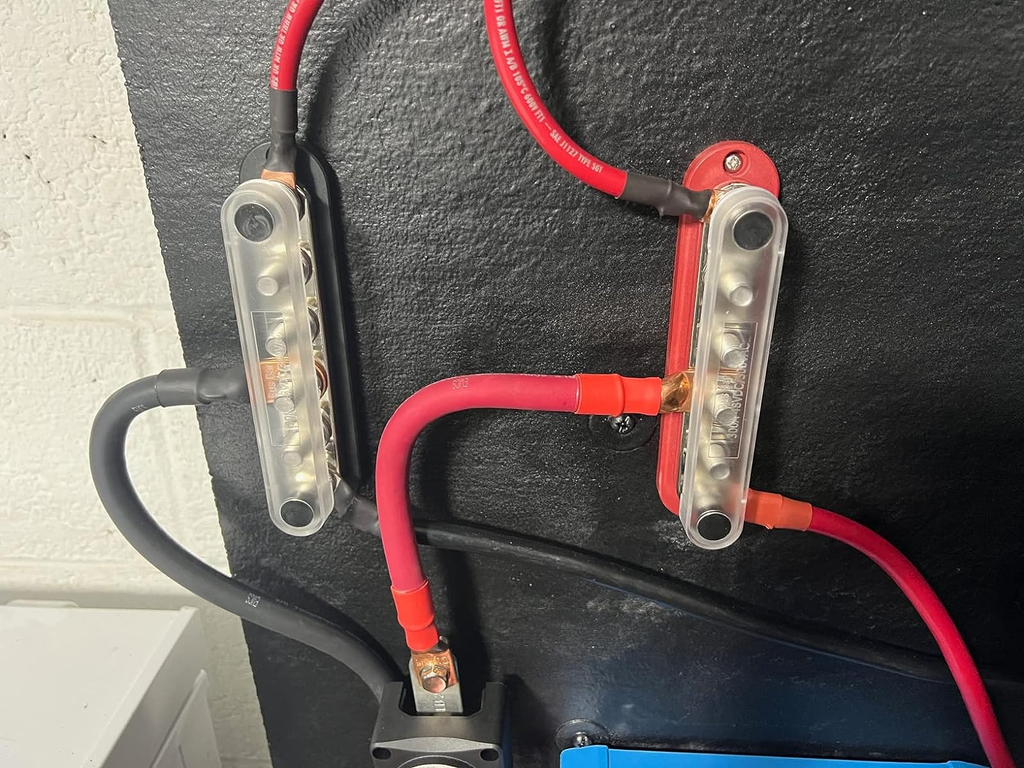

I bought these as power distribution bus bars on one of my smaller solar power systems. These bus bars are made of tinned plated copper bus bars with a 300 amp rating. The bus bars are very strong with six 3/8" studs and protective covers. Great for heavy gauge cables moving lots of current.
These bus bars are very capable and have high conductivity for a low resistance connection. If you want a great connection, make absolutely sure the bus bars are copper. They are very easy to install and have lots of room for expansion.
These bus bars are a terrific value for the price. I highly reccomend them to anyone looking for good bus bars for solar, RV, Marine and other applications. I give them 5 stars.
J
For the money and being rated for 300A they are decent busbars for where high amperage connections are needed.
Is decent for people who are looking for a little larger bus bar on a small budget.
R

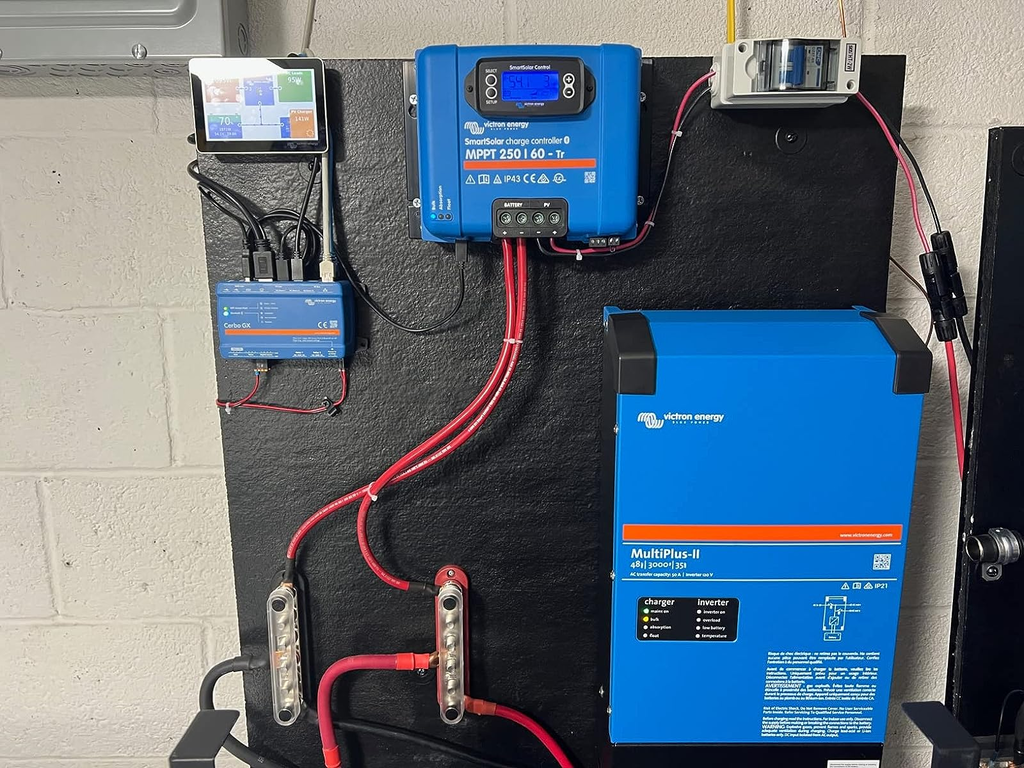

Well made hefty bus bars that function above and beyond my expectations. I have these connected to a 48 volt battery bank of 600 amp hour (3 strings of 4 lipo4 batteries) that supply power to the 10k hybrid inverter. These bus bars are awesome, if you are using solar panels and very expensive lipo4 batteries then you really need these bus bars.
