400A Dual Bus Bar Kit with Weatherproof Box Power Distribution Block with 4 x M8 Studs

Package Includes:

1 x Dual Bus Bar with Enclosure

4 x M8 Flange Nuts

4 x Mounting Screws

8 x Rubber Grommets

About this item

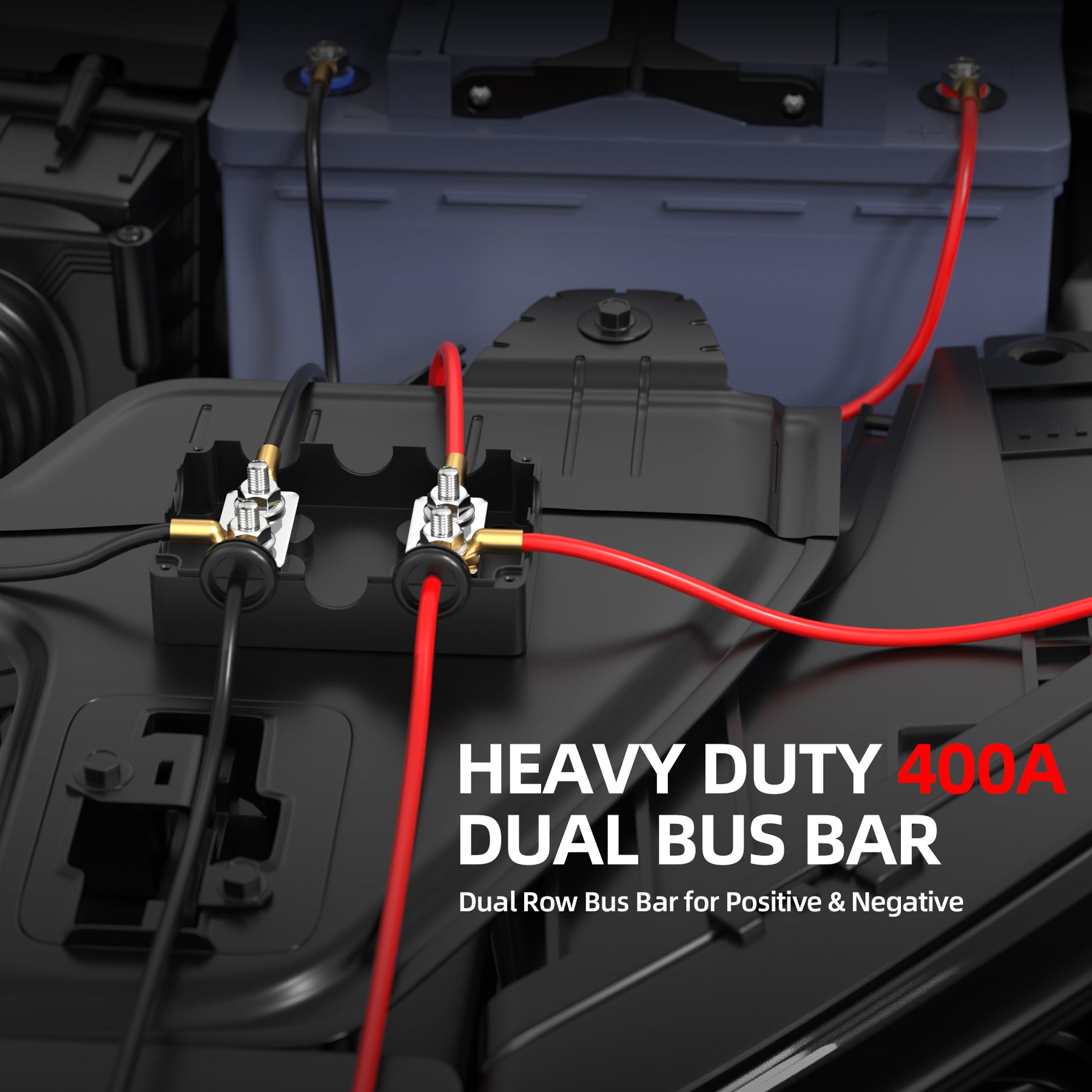

【High-Capacity Power Management】- This heavy-duty bus bar is engineered to handle demanding electrical loads, rated for a maximum current of 400 Amps at 12V DC. The dual bus bar design provides separate positive and negative distribution points in a single, organized block. This 400A power distribution block is ideal for managing high-current circuits in any vehicle or marine system.

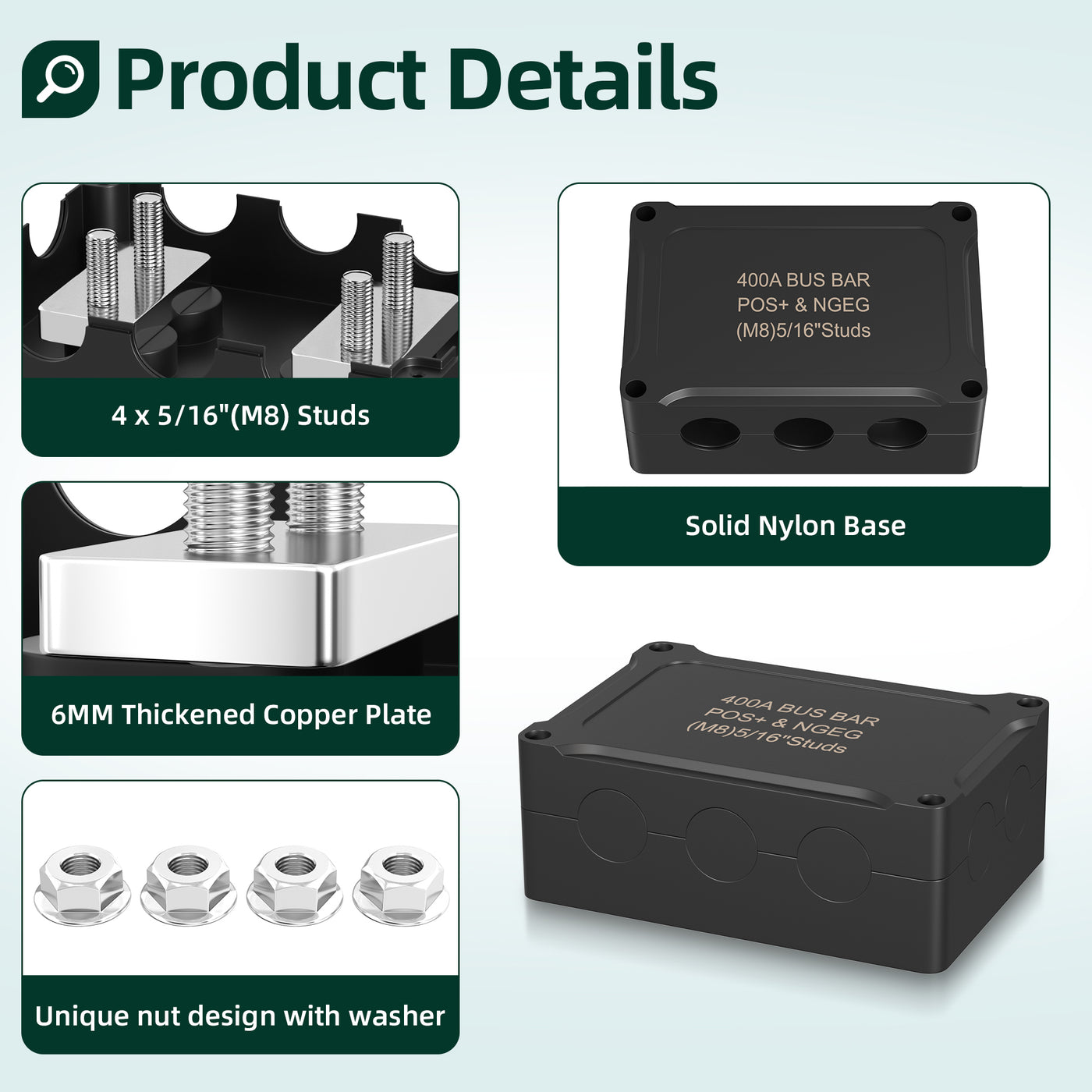

【Superior Material Construction】- The bus bars are constructed from 6mm thickened pure copper plate for exceptional electrical conductivity and minimal voltage drop. The terminal studs are made from high-quality stainless steel for superior strength and corrosion resistance. The entire assembly is mounted on a solid, flame-retardant nylon base for durability and safety.

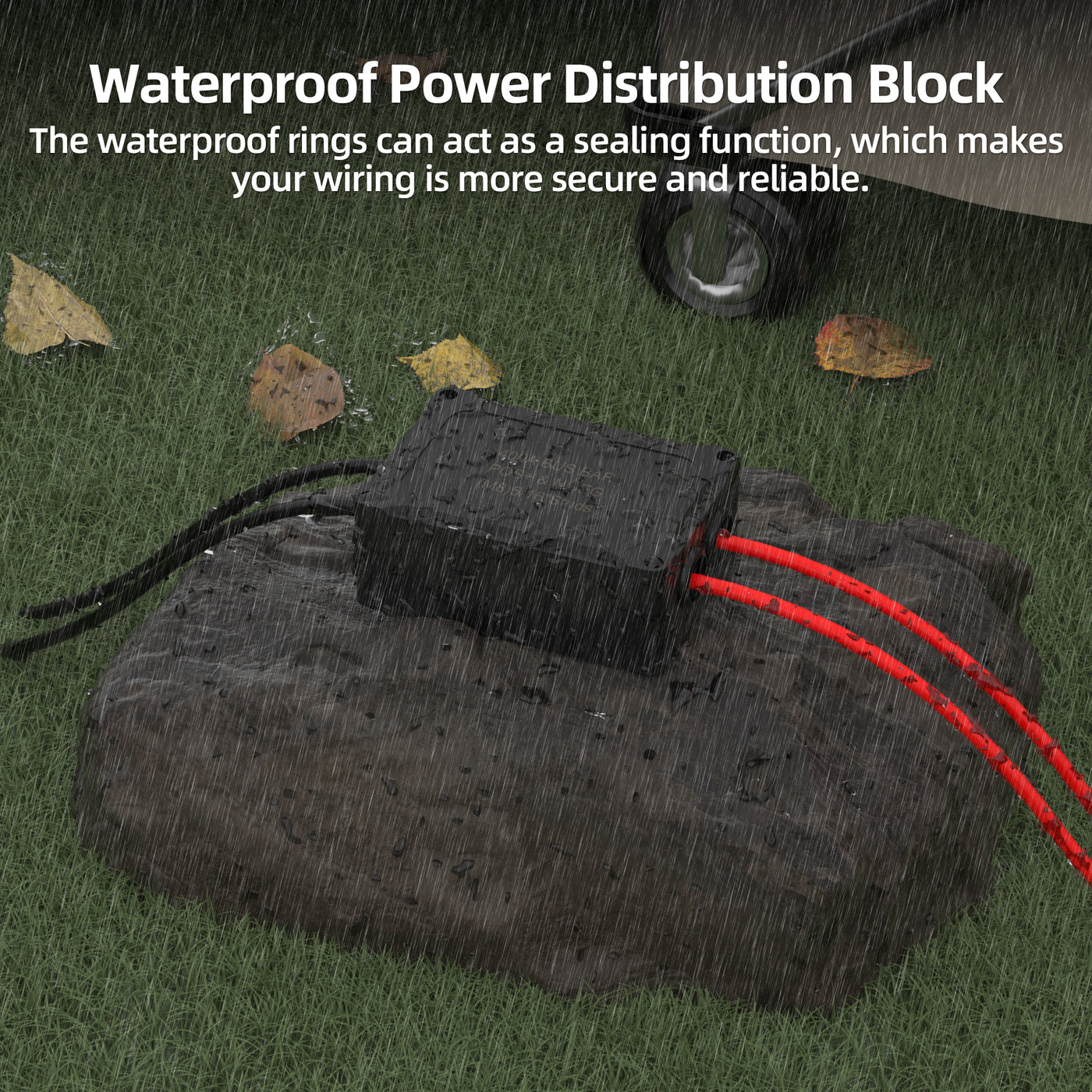

【Weatherproof Enclosure Design】- This power distribution block is housed within a rugged, weatherproof enclosure to protect all electrical connections. The sealed junction box includes multiple removable rubber grommets that create a tight, waterproof seal around your cables. This protective design makes the bus bar suitable for use in engine bays, marine environments, and outdoor applications.

【Versatile Connection Points】- This dual-row bus bar features four 5/16" (M8) stainless steel terminal studs, providing secure connection points for large ring terminals. The included unique flange nuts feature an integrated washer design, ensuring a tight grip and reliable contact. This configuration allows for the consolidation of multiple positive and negative cables.

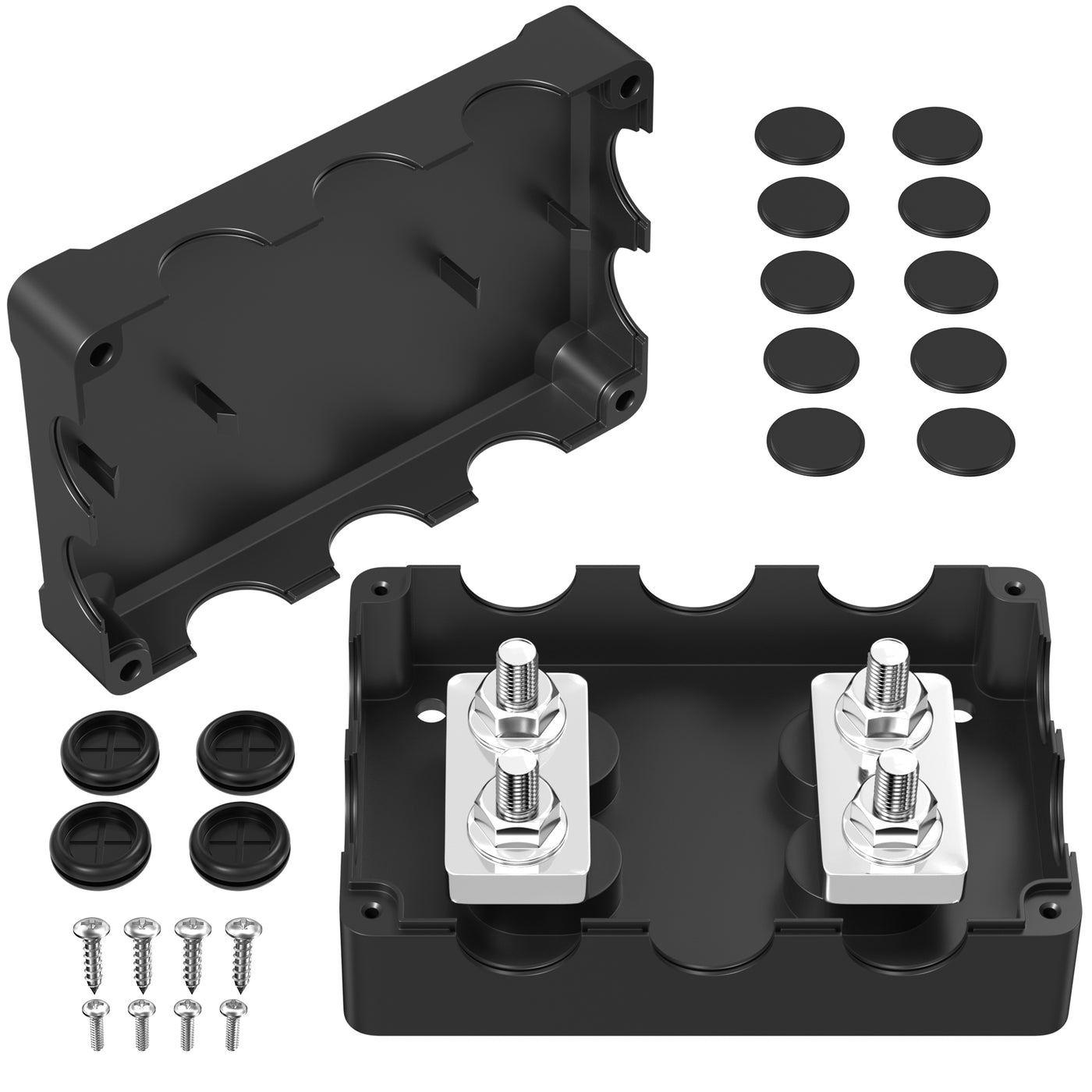

【Complete Installation Kit】- This bus bar terminal block kit arrives with all the necessary components for a clean and professional installation. The complete package includes the dual bus bar with enclosure, four M8 flange nuts, four mounting screws, and a set of eight removable rubber grommets. This all-in-one solution simplifies the process of upgrading your electrical system.

Spec
