About this item
1 Batch include 2 Switches
【Function】- 2 Way Locking LED toggle switch with 3 pins, SPST design(single pole single throw), designed with rocker style easy to turn ON/OFF.

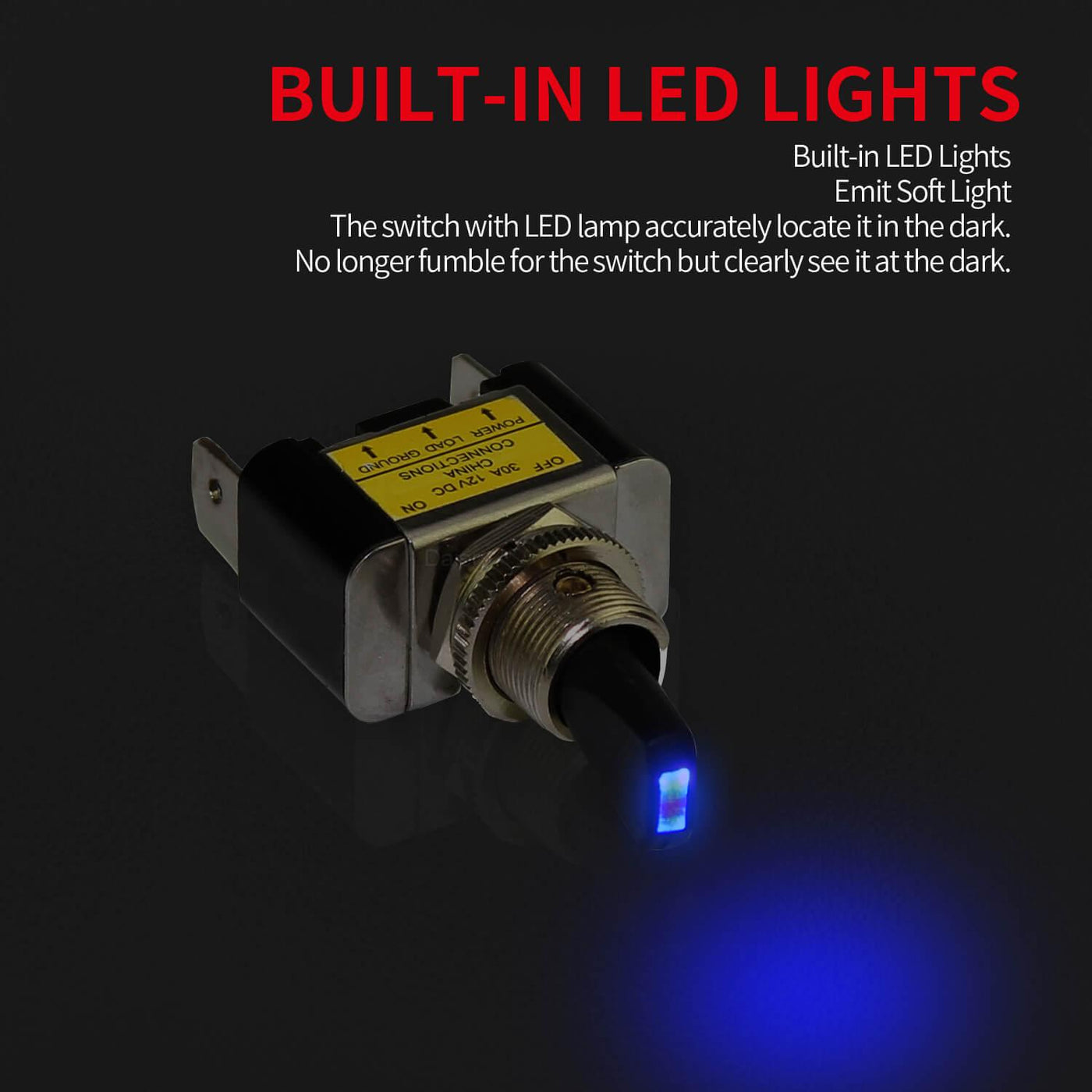

【Feature】- The rating is 30A 12VDC LED are available in four colors: Red/Yellow/Blue/Green. The LED will illuminated when the switch is turned on.
【Size】 - 12V toggle switch Overall size is 1.12*0.63*2.21 inches(28.3*16*56 MM). Mounting hole size is 0.48 inches (12.2MM).
【Terminal】 - ON/OFF toggle switch with 250 Quick-connect Terminals and 0.03 inches(0.8 MM) thickness.
【Application】 - marine SPST toggle switch is widely applied to various additional electric equipment inside and outside the car, such as lights, chassis lamp,fog lamps, dome light etc.
|Panel Cut-Out Size:||12mm|
|Panel Thickness:||10mm Max|
|LED Voltage:||12 Volt|
|Connector Type||Quick Connect(6.3x0.8mm)|
|Electrical Life:||≥10,000 Cycles|
We will use Economy International express service operated by China Postal Express. And it’s for light-weight products that less than 2kg with delivery in 10-25 days.
You can choose this way, and normally we will use FEDEX or DHL. the shipping Rate is depend on the total weight of products, and delivery date will be 3-7 days.
Refund arrival time: 1-2 working days
Refund path: return to the original path
Refund contact information: firstname.lastname@example.org
Rather easy to install, and they work like there suppossed to, I have a 30 amp compressor one of them is connected to, and it passes the amperage no problem, also the blue lights are very good indicator that there on, and they are very bright

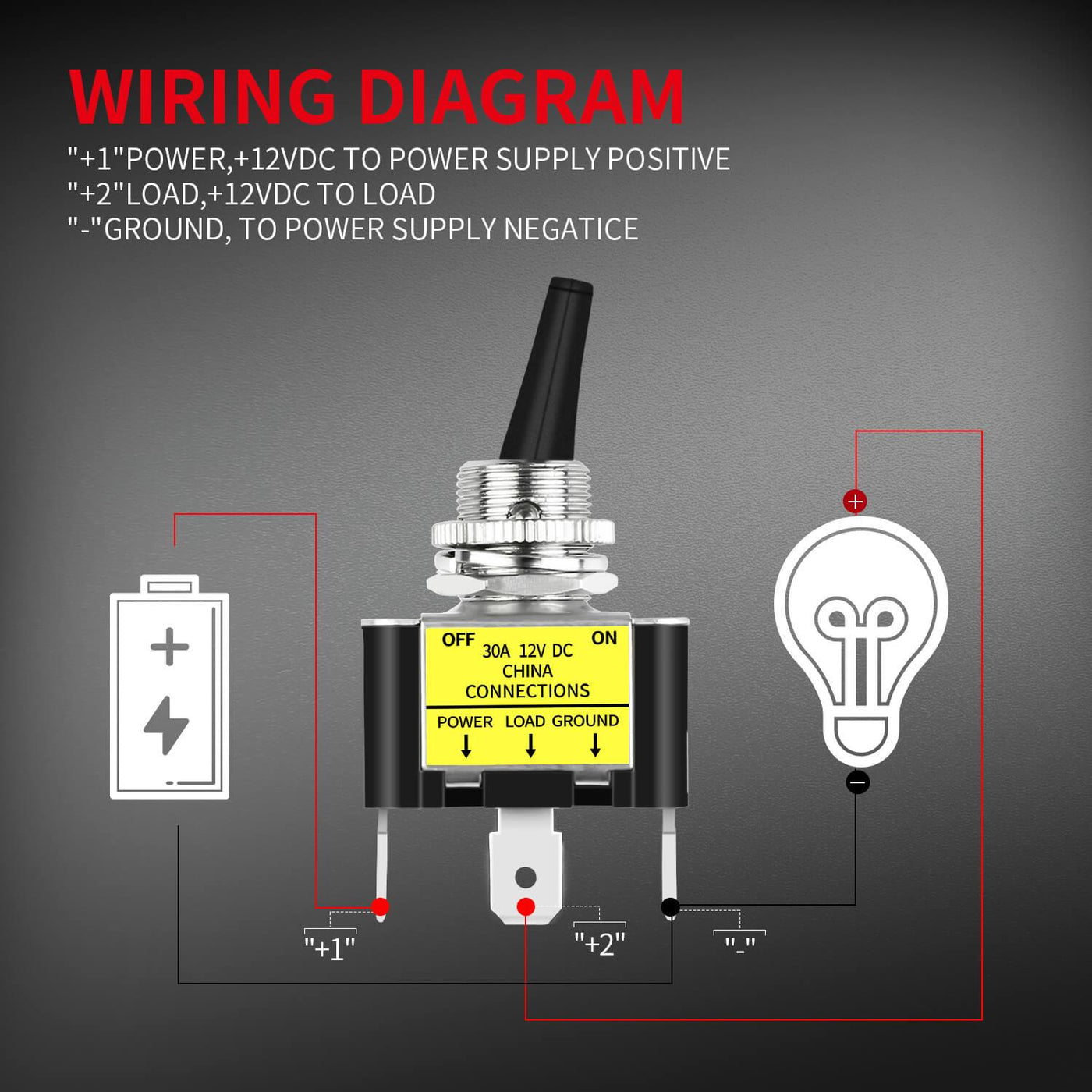

Bought these as replacement switches for a battery powered lantern. They worked well and the wiring diagram on the side of the switch was easy to read and helpful. The red LED at the end of the switch lights up when the switch is in the “on” position. I would buy these again.
I’m very impressed with the high quality materials for the price. Especially it can illuminates at night so you can easily locate it. And it works perfect on my truck. Im super satisfied with this product and I would buy this product again.
Used this as an accessory switch to wire up some led strips to my boat. Everything came out great, I’m glad I did it!
No dislikes here. The switch is a straightforward toggle type with a LED at the tip of the lever (which is quite bright). It's installed in the dash of a hot rod and it looks great.
