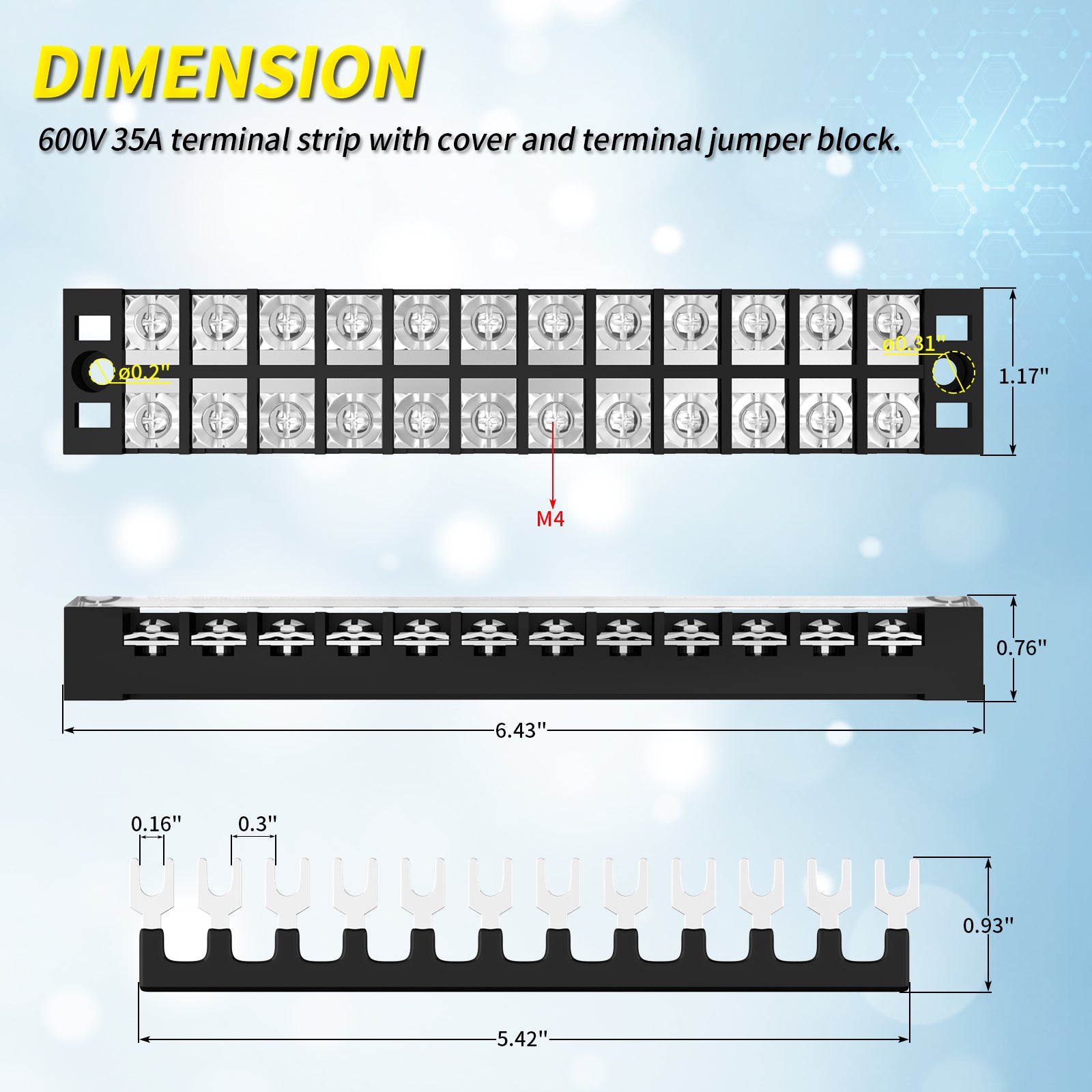

TB-3512 12 Position Terminal Jumper Block Dimension

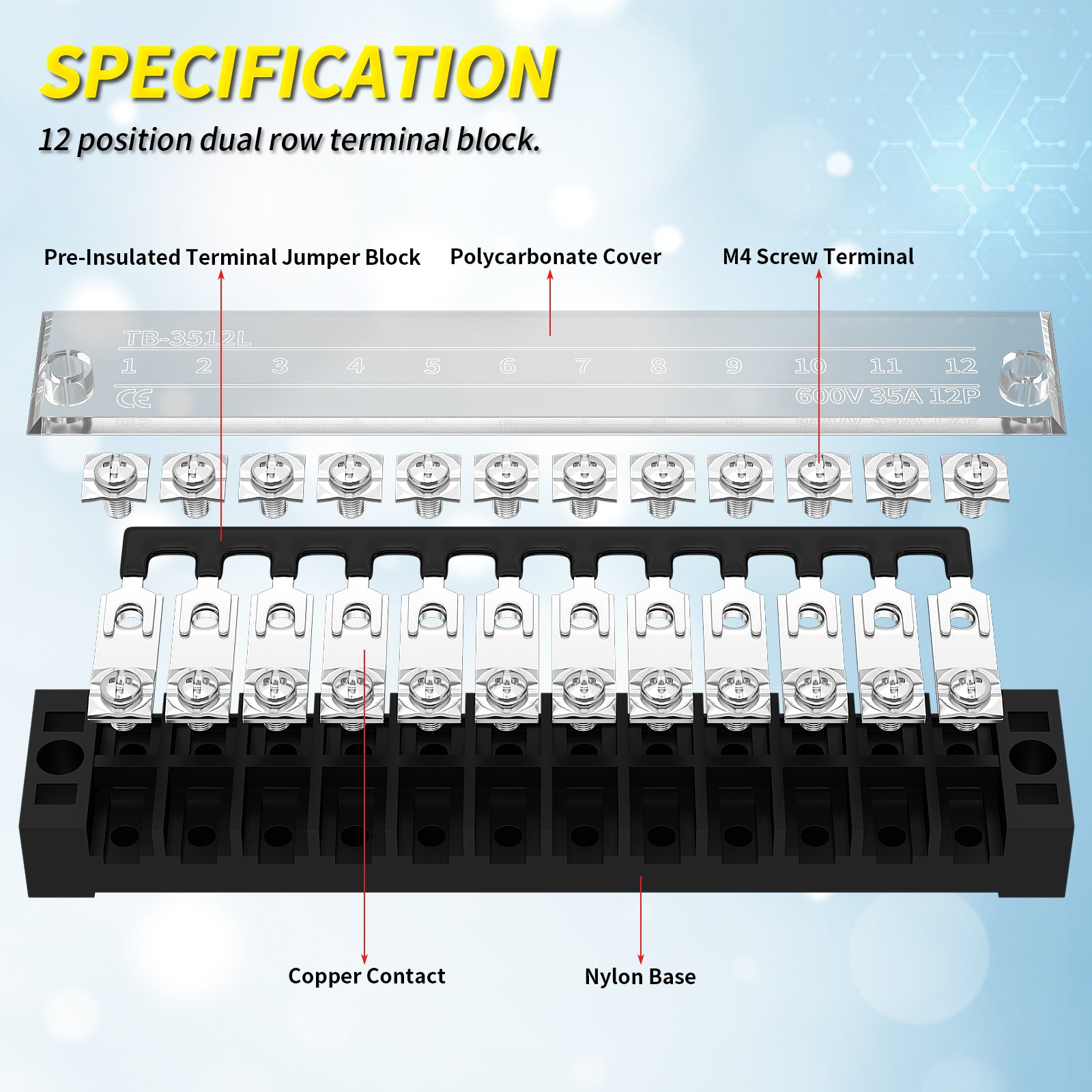

TB-3512 12Position Terminal Jumper Block Specification
TB-3512 12 Position Terminal Jumper Block Display of Product
TB-3512 12 Position Terminal Jumper Block with Protect Cover
TB-3512 12 Position Terminal Jumper Block
TB-3512 12Position Terminal Jumper Block Application

2 Sets 35A 600V Dual Row 12 Position Terminal Jumper Block with Terminals

Regular price$10.99
/
Shipping calculated at checkout.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

  • Descriptions
  • TECHNICAL DATA SHEET
  • Shipping & Returns
  • Reviews

Descriptions

About this item

Diverse Terminal Configuration- This screw terminal block set features dual rows with 12 positions, and comes with a cover and terminal jumper block for comprehensive terminal management.

Higher Amp Handling Capacity- With its robust 600V 35A rating, this terminal strip surpasses others in its ability to handle a wide range of applications, ensuring reliable performance in various scenarios.

Protective Cover Included- Each marine terminal block in this set comes equipped with a protective cover. This thoughtful addition effectively shields exposed contact areas, minimizing the risks of short circuits and accidental contact.

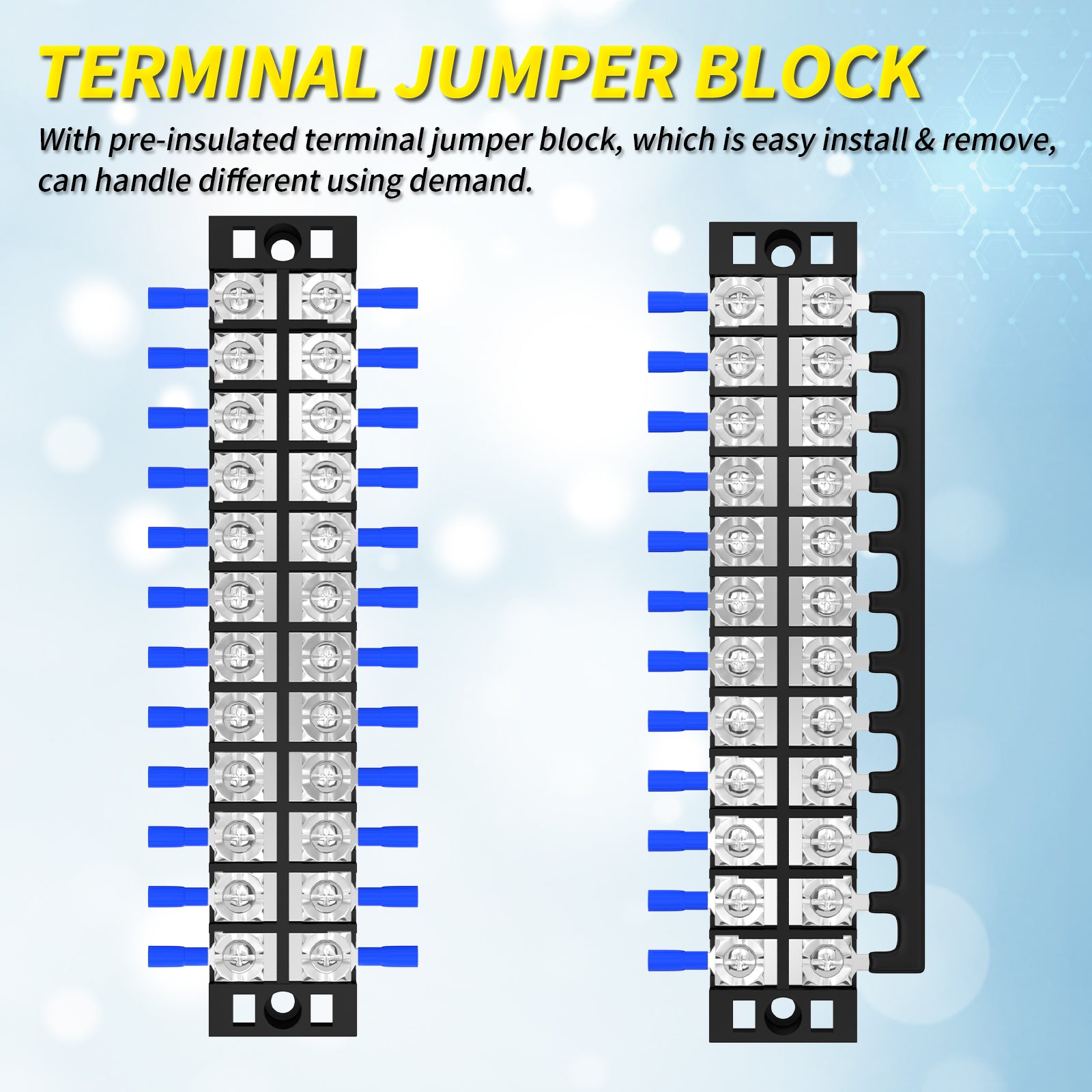

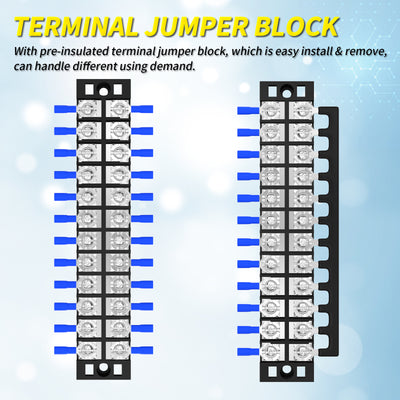

Convenient Pre-insulated Jumper- This wire terminal blocks set includes a pre-insulated jumper block that simplifies installation and removal, tailored to different requirements, ensuring flexibility and ease of use.

【Versatility in Terminal Blocks】- With its flexible design and the inclusion of pre-insulated jumper blocks, this terminal blocks set offers versatility in installation and removal, catering to diverse needs.

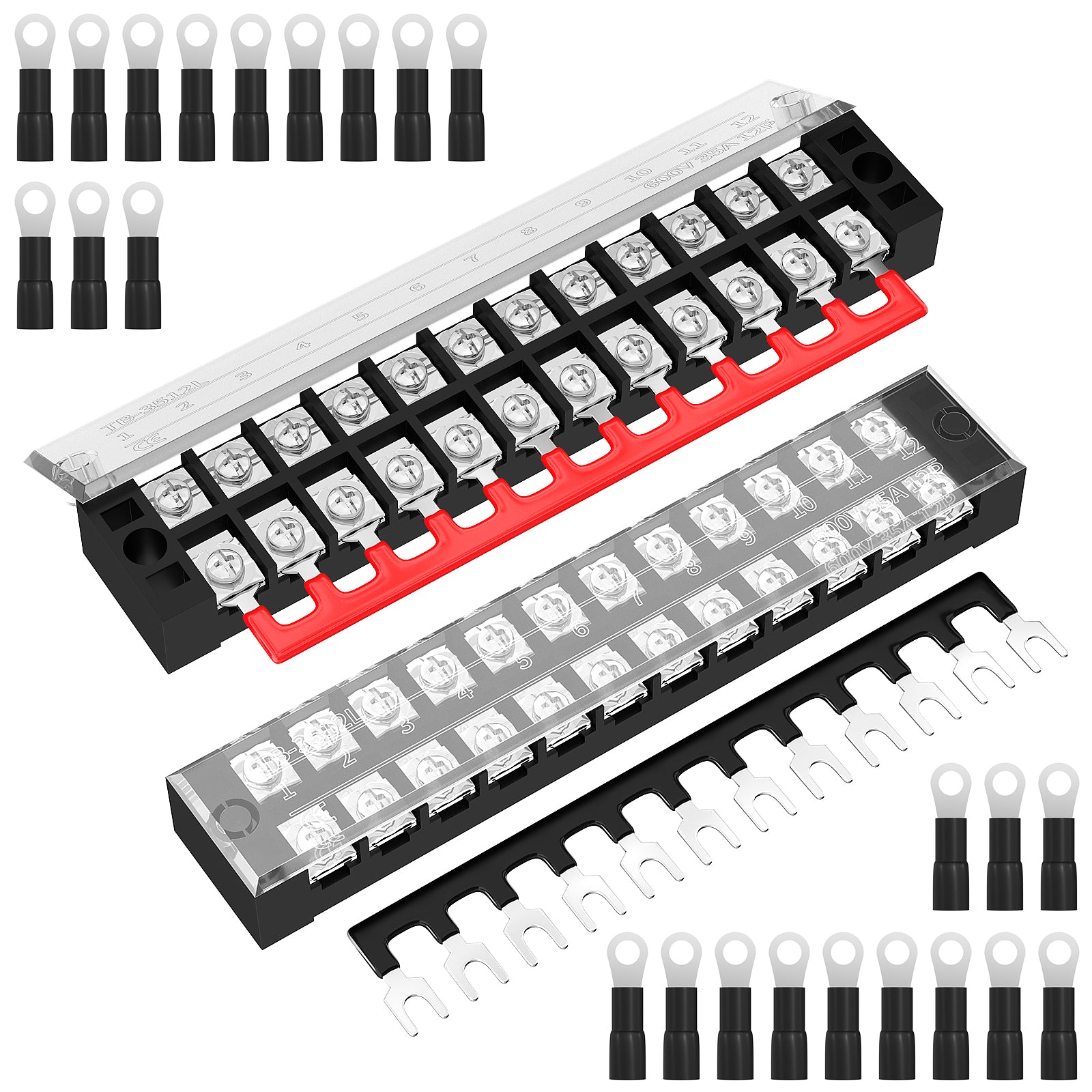

Package Includes:

2 x 12 Position Terminal Strip

1 x Red Pre-Insulated Terminal Jumper Block

1 x Black Pre-Insulated Terminal Jumper Block

24 x RV3.5-4 Insulated Terminal

Spec

Part NO TB-3512+RV3.5-4
Voltage Rating 600V
Amperage Rating 35A
Number of Row 2 Row
Number of Position 12 Position
Terminal Size M4 Screw Terminal
Connector Type Screw
Contact Material Copper
Contact Plating Material Nickel Plated
Mounting Type Panel Mount
Overall Dimension 163.3mm x 29.7mm x 19.3mm (LxWxH)
