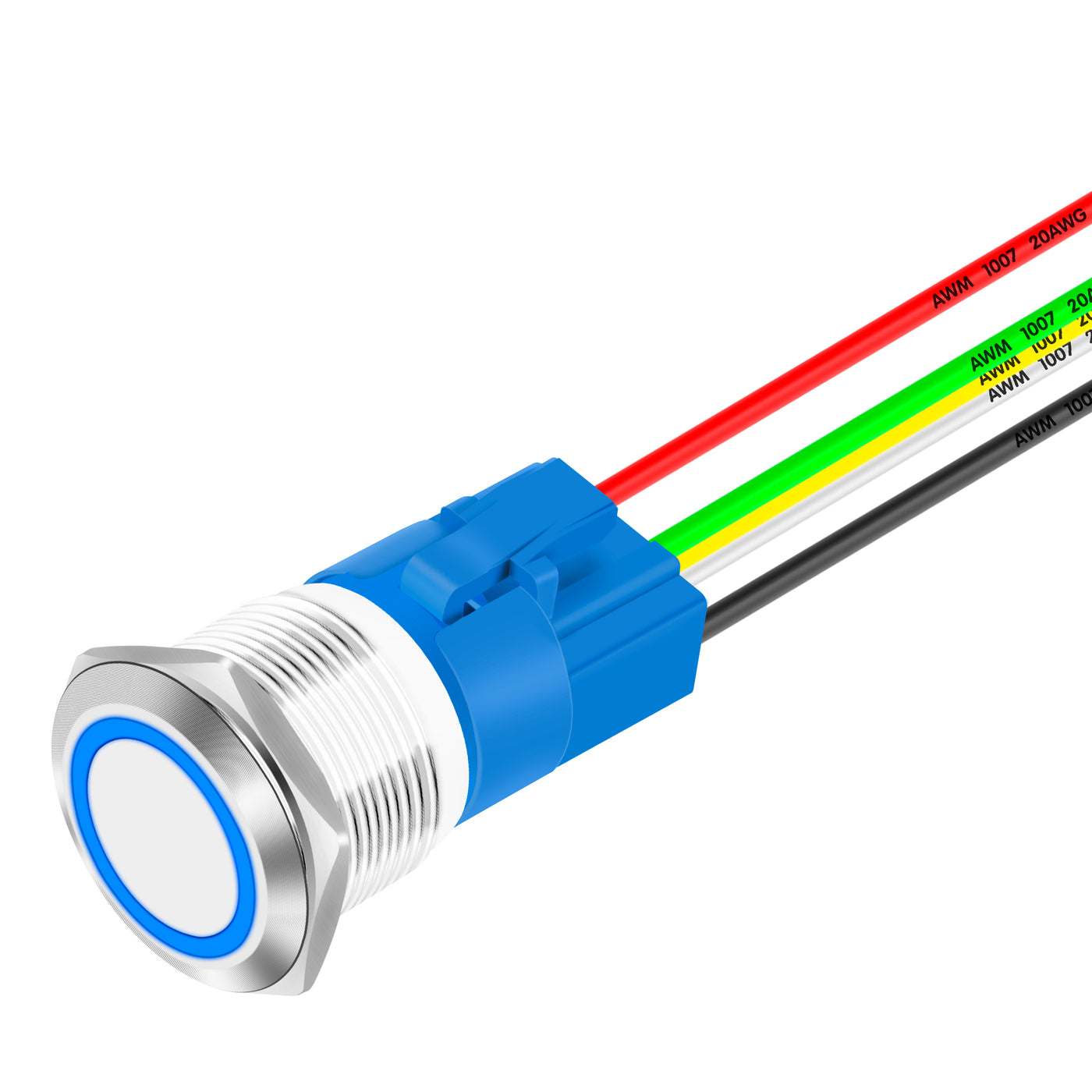

LAS3-22F-W11E 22mm Latching or Momentary Illuminated Pushbutton with 24V Ring LED
LAS3-22F-W11E Pushbutton Dimension
LAS3-22F-W11E_Flat_Button_Style_Momentary
LAS3-22F-W11E Flat Button Style Self-Locking
LAS3-22F-W11E Waterproof IP65 Pushbutton
LAS3-22F-W11E Pushbutton Wiring Harness
LAS3-22F-W11E Pushbutton Wiring Diagram

22mm Latching or Momentary 24V Ring LED Illuminated Pushbutton

Regular price$7.69
/
Shipping calculated at checkout.

Function
Housing Color
LED Color

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

  • Descriptions
  • TECHNICAL DATA SHEET
  • Shipping & Returns
  • Reviews

About this item

【Illuminated Design】- Our 22mm pushbutton switch features a vibrant LED ring halo that provides clear visibility even in low-light conditions. Whether you need momentary or latching functionality, this switch is designed to meet your needs.

【High Performance】- With a contact rating of 5A 12V DC and 5A 250V AC, our pushbutton switch ensures reliable and efficient operation. Its SPDT 1NO, 1NC configuration offers versatile switching options for various applications.

【Easy Installation】- The stainless steel metal pushbutton switch is designed with a 22mm mounting hole size, allowing for easy installation in your desired location. Additionally, it comes with a wiring harness that features 5 wires and a convenient clasp design for effortless setup and removal.

【Enhanced Visibility】- Equipped with a 24V LED ring, our pushbutton switch provides excellent visibility, making it easy to locate and operate in dark environments. This feature is particularly beneficial in applications where quick and accurate switch identification is crucial.

【Waterproof and Versatile】- Designed with an IP65 waterproof rating, our 12V push button light switch is suitable for a wide range of applications, including marine, boat, automotive, and more. Its waterproof design ensures reliable performance even in challenging environments, making it a versatile choice for various industries.

What’s in the package:

1 x push button switch

1 x wiring harness

Spec

Part NO  LAS3-22F-W11EL/M-N-24V
Mounting Size 22mm
Rating 5A 12VDC
Function Latching(L) / Momentary(M)
Contact Type 1NO1NC  SPDT
Terminal 5 Pins
Terminal Type Solder Terminal
Button Type Flat Button
Illuminated Type Ring LED
LED Voltage 12V / 24V
LED Color Red/Green/Yellow/Blue/White
Waterproof Degree IP65
Housing Color Black(A) / Silver(N)
Wire Length 140mm
Wire Size 20AWG
