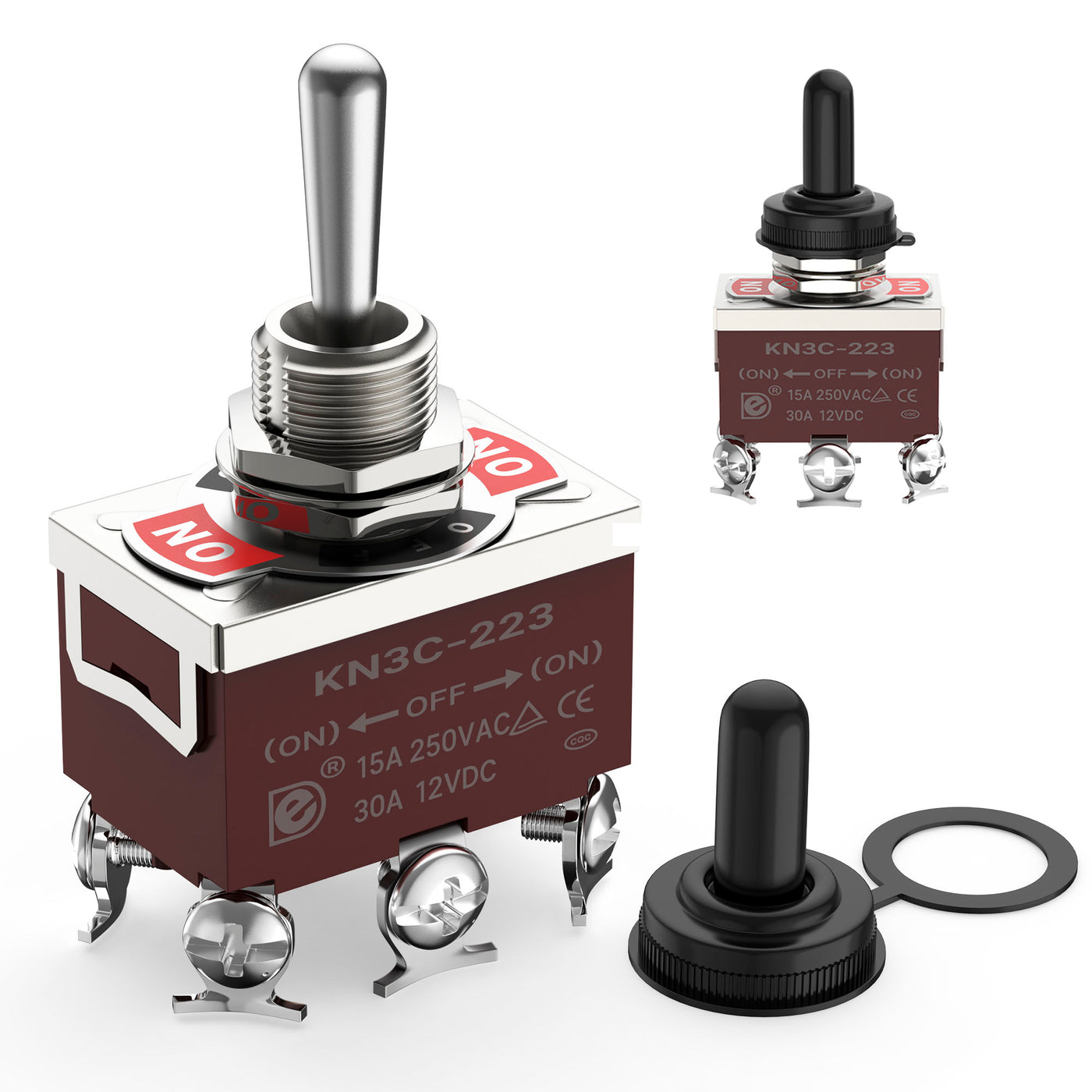

KN3C-223AA+WPC-06 30A 12VDC Momentary DPDT 6 Pin Toggle Switch

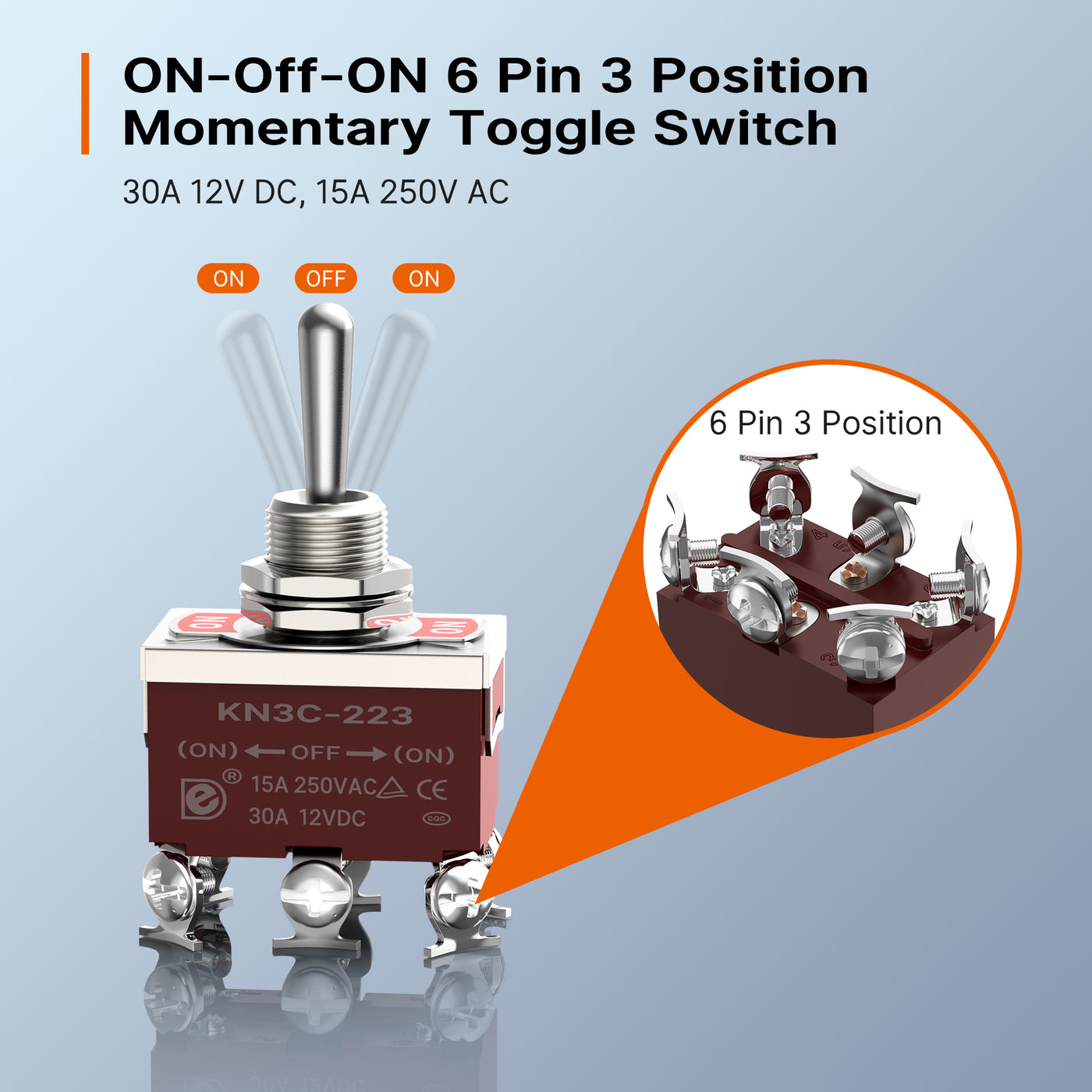

KN3C-223AA+WPC-06 (ON)-OFF-(ON) 6 Pin 3 Position Momentary Toggle Switch Dimension

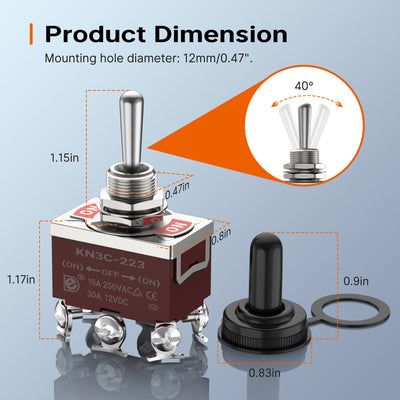

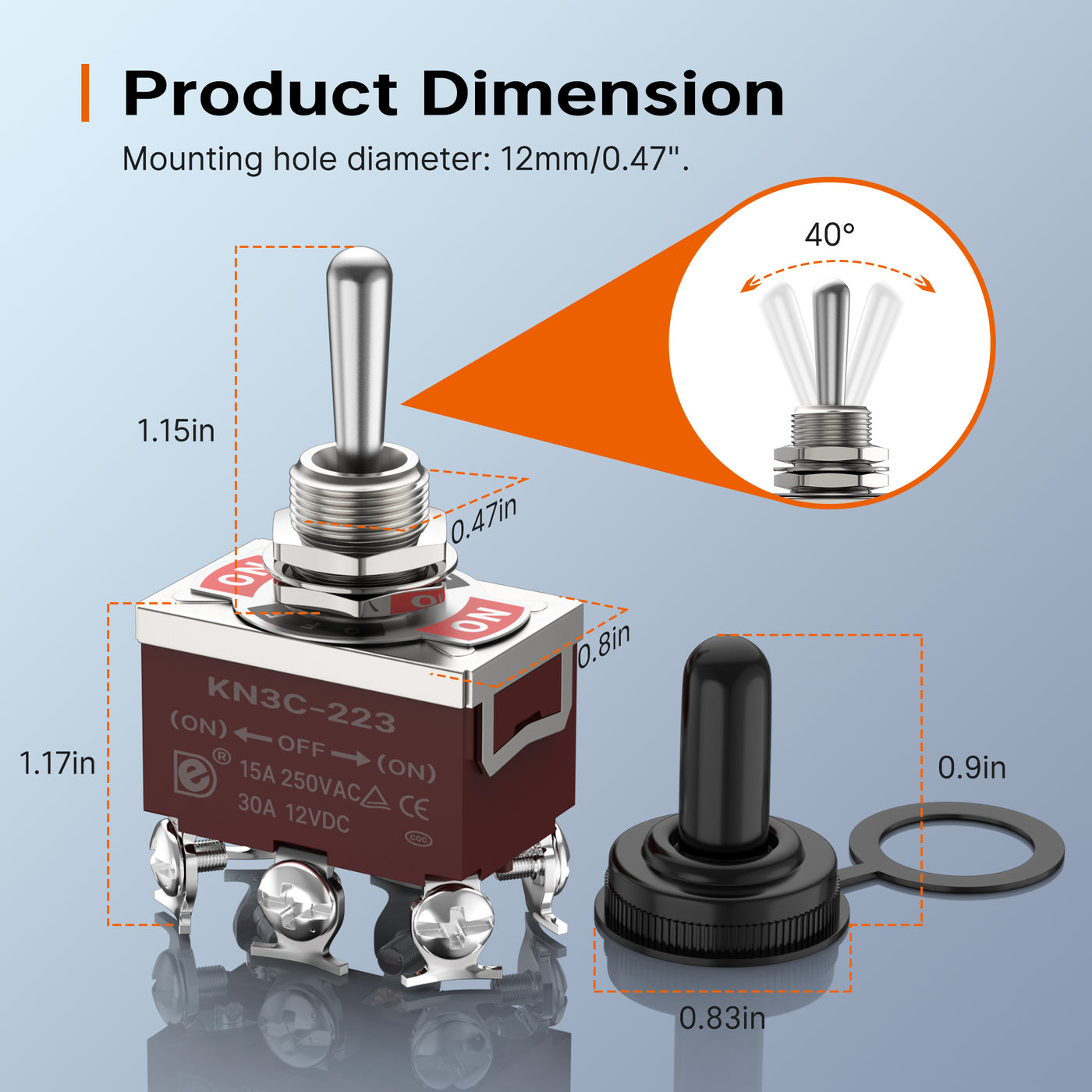

KN3C-223AA+WPC-06 30A 12VDC Momentary DPDT 6 Pin Toggle Switch Dimenson

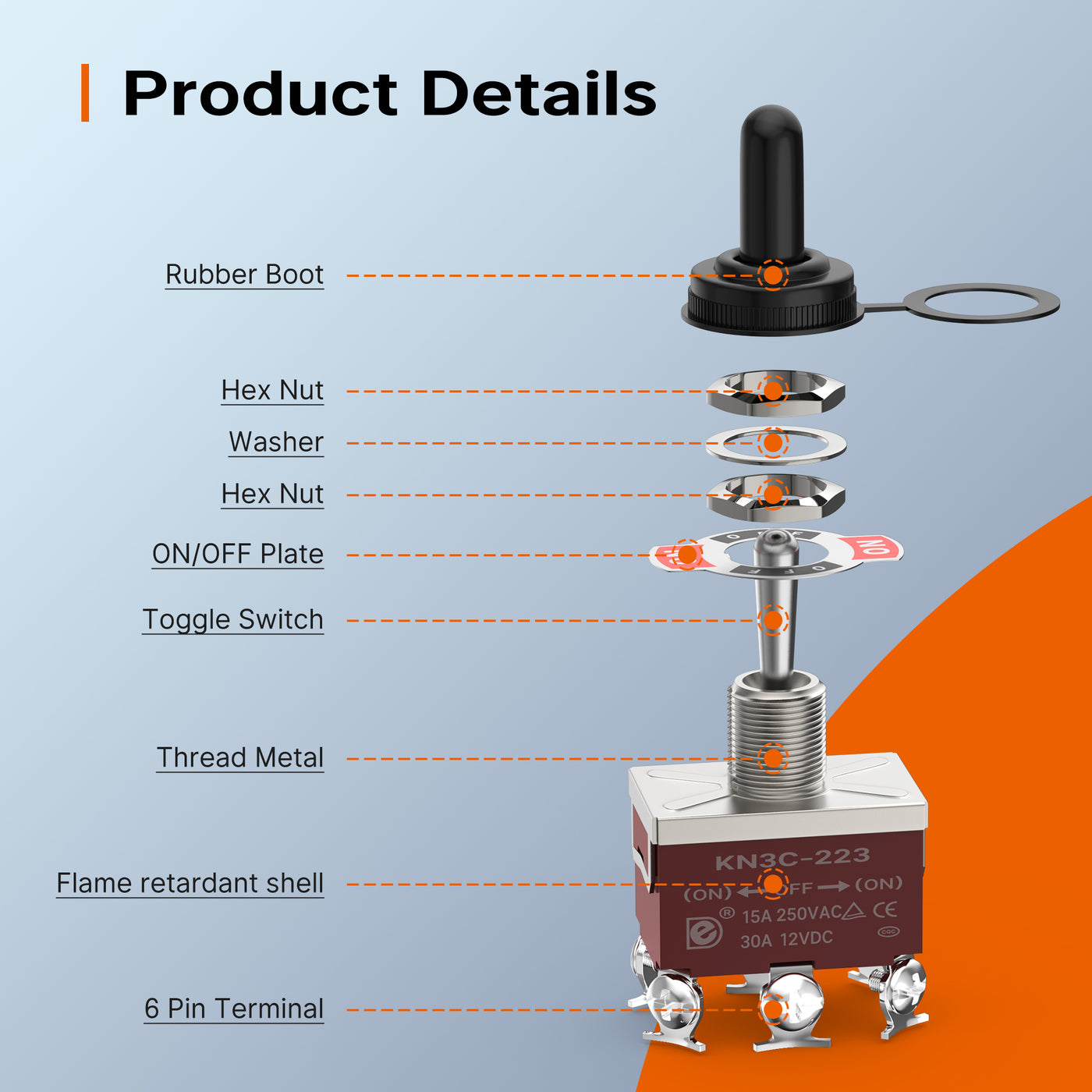

KN3C-223AA+WPC-06 Momentary DPDT 6 Pin Toggle Switch Details

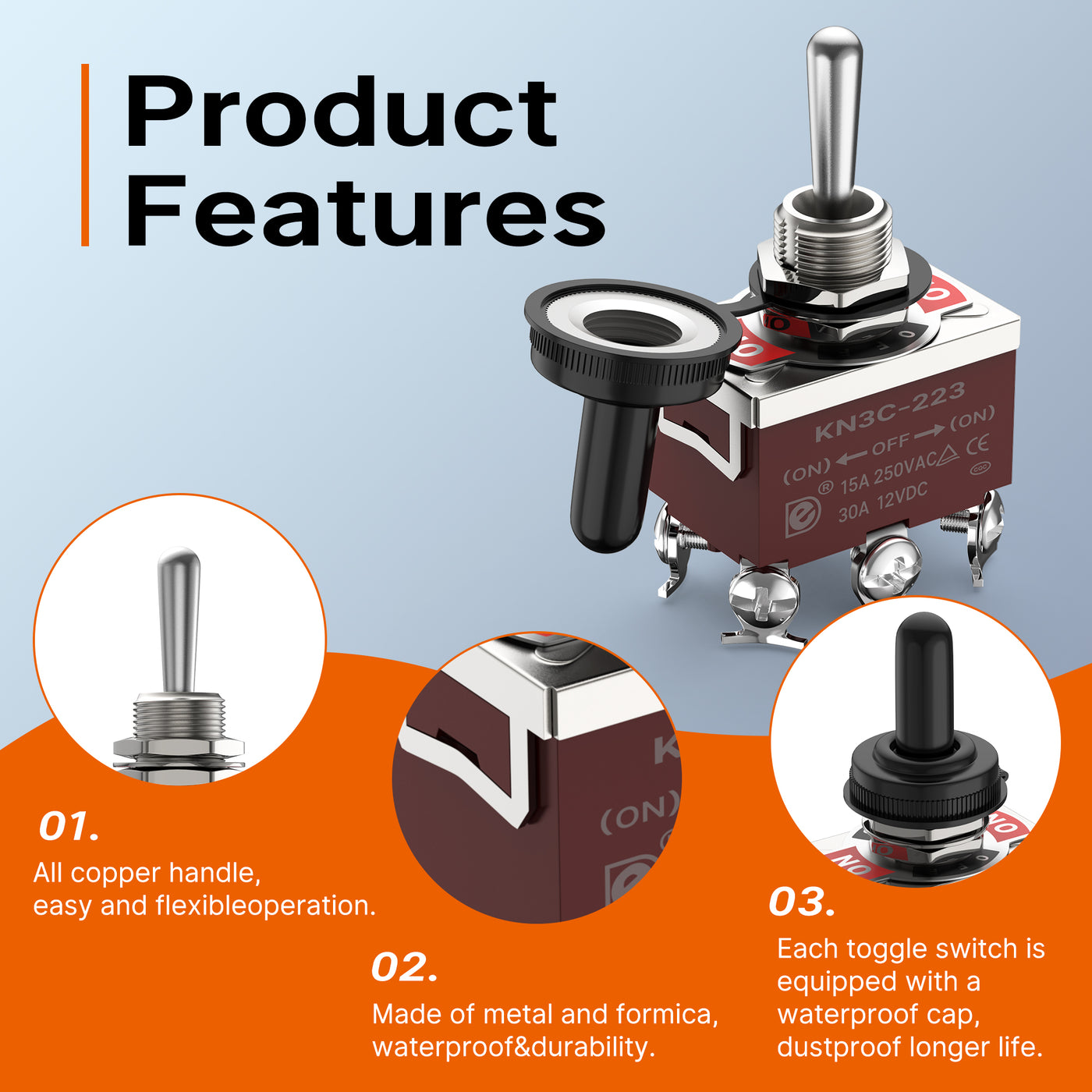

KN3C-223AA+WPC-06 Momentary DPDT 6 Pin Toggle Switch Features
KN3C-223AA+WPC-06 30A 12VDC Momentary DPDT 6 Pin Toggle Switch Application

30A 12VDC Momentary 3 Position (ON)-OFF-(ON) DPDT 6 Pin Toggle Switch

Regular price$7.99
/
Shipping calculated at checkout.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

  • Descriptions
  • TECHNICAL DATA SHEET
  • Shipping & Returns
  • Reviews

About this item

【Versatile Function】- This waterproof momentary toggle switch is a double pole, 6-pin DPDT 3-way toggle switch designed for (ON)/OFF/(ON) functions. It offers flexibility for controlling circuits in three different ways.

【Heavy-Duty Rating】- With a robust rating of 30A at 12V DC, 20A at 125V AC, and 15A at 250V AC, this 3-way momentary switch is built to handle heavy loads, making it an excellent choice for high-current applications.

【Easy Installation】- Installing this 12-volt toggle switch is a breeze. It fits into a 12mm (0.47-inch) mounting hole, and each terminal of the 12V momentary switch is equipped with a machine screw for secure and efficient connections.

【Effective Waterproofing】- This 3-position toggle switch comes with a toggle switch cover to ensure waterproof functionality. With the boot cap installed, the waterproof toggle rocker switch achieves an IP65 waterproof rating, making it suitable for wet and challenging environments.

【Wide Range of Applications】- This marine-grade toggle switch is versatile and can be used in various motorized vehicles, including marine vessels, boats, motorcycles, racing cars, automotive vehicles, RVs, ATVs, UTVs, trucks, golf carts, and airplanes. Its adaptability makes it a valuable component for a wide array of applications.

What’s in the package

1 Batch includes 2 Switches&2 Cover Cap

Spec

Part NO KN3C-223AA+WPC-06
Rating: 30A 12V DC ; 20A 125VAC ; 15A 250VAC
Material: Bakelite, Metal
Contact Material: Silver
Panel Cut-Out Size: 12mm
Function: (ON)-OFF-(ON) DPDT
Terminal: 6 Pins
Connector Type: Screw Terminal
Cover Thread: M12X0.75mm
Cover Color: Black
Contact Resistance: ≤50mΩ
Insulated Resistance: ≥100MΩ
Dielectric Strength: 1 Minute 1500V AC
Operating Temperature: -25℃~+85℃
Electrical Life: ≥10,000 Cycles
