BB150-T1M6S12-RB 48VDC 150A M6 Stud Marine Bus Bar With Cover and Terminals
BB150-T1M6S12-RB 48VDC 150A M6 Stud Marine BusBar Size
BB150-T1M6S12-RB 48VDC 150A M6 Stud Heavy Duty Bus Bar
BB150-T1M6S12-RB 48VDC 150A M6 Stud Marine Bus Bar Features
BB150-T1M6S12-RB 48VDC 150A M6 Stud Marine Bus Bar Application

48VDC 150A 1×M6 Stud Marine Bus Bar With Cover and Terminals

Regular price$24.99
/
Shipping calculated at checkout.

Stud Size

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

  • Descriptions
  • Technical Data Sheet
  • Shipping & Returns
  • Reviews

Descriptions

About this item

Rugged Performance】- This 48VDC busbar is engineered to withstand heavy-duty demands. It’s rated for a maximum operating voltage of 48V DC and can continuously handle amperages of up to 150A.

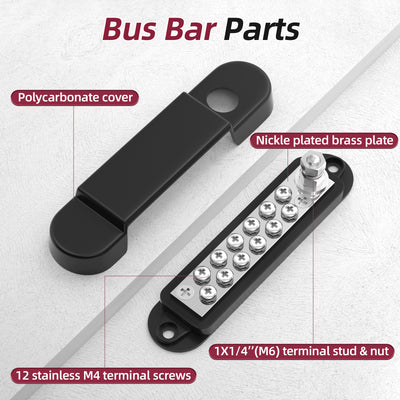

Innovative Configuration】- Equipped with 12 robust stainless steel M4 terminal screws, as well as a 1/4″ (M6) terminal stud and nut, this busbar is designed for effortless installation. It simplifies wire routing, saving you time and effort.

Quality Build】- Crafted with a thick nickel-plated brass plate, this busbar guarantees both conductivity and durability. Its base is constructed from high-quality ABS material, providing mechanical strength and resistance to heat and flames. The result is a robust, insulated, and long-lasting product designed with safety in mind.

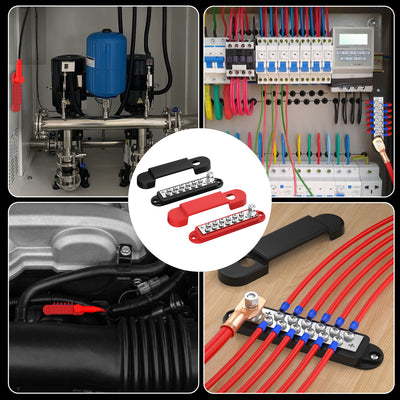

【Versatile Application】- Utilize this busbar for organized and tidy circuit connections, which significantly reduces the risk of short circuits. It finds extensive application in various scenarios, including automotive, caravan, marine, yacht, and solar systems.

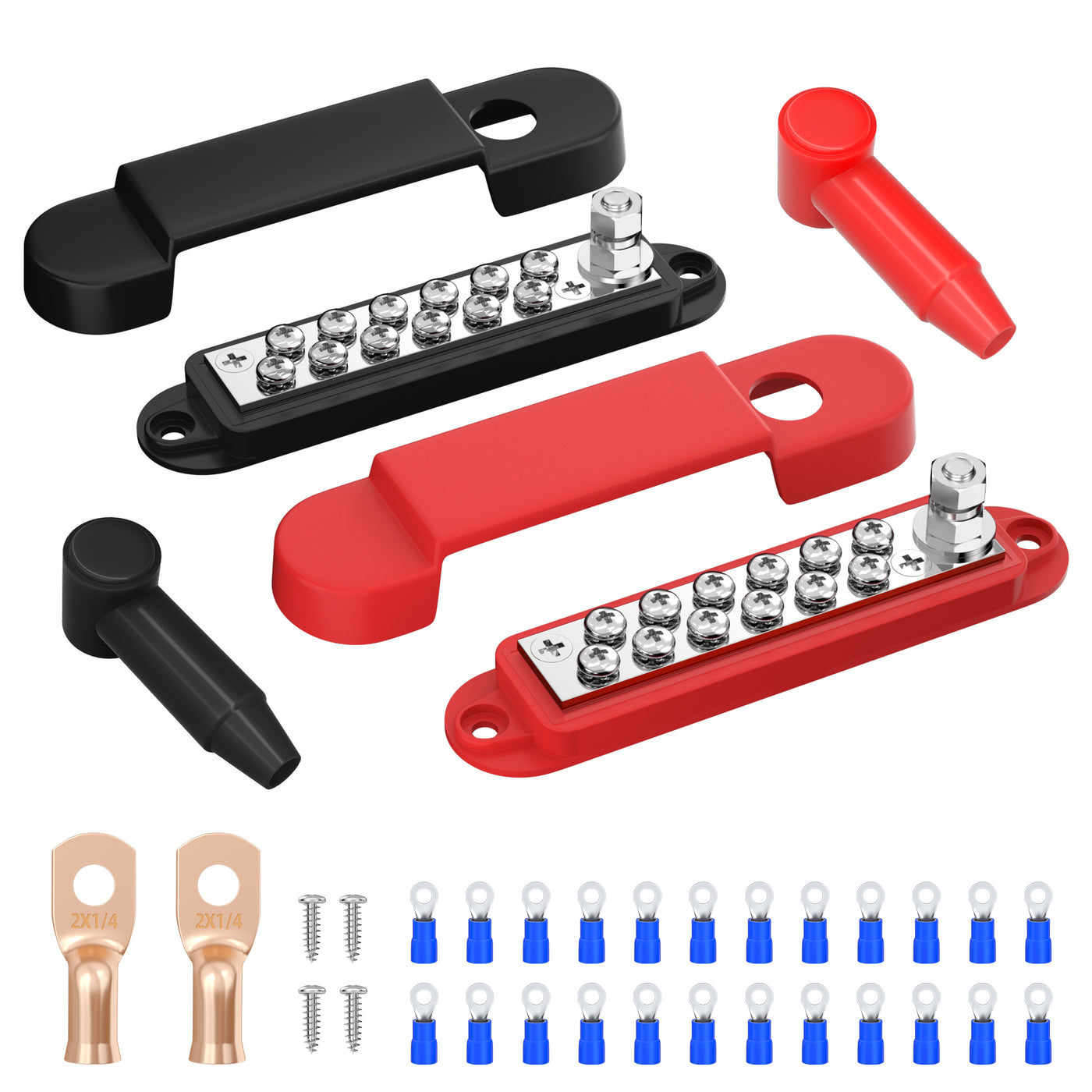

Package Includes:

1 x Red Positive Bus Bar

1 x Black Negative Bus Bar

2 x 2AWG 1/4" Copper Lug

24 x Terminals

Spec

Part NO BB150-T1M6S12-C+CCI25-70
Connection Type Red for Positive
Black for Negative
Terminal Studs 1 x M6 (1/4")
Terminal Screws 12 x M4 (#8)
Max Voltage 300V AC, 48V DC
Max Continuous Amperage 130A AC, 150A DC
Base Material Nylon
Plate Material Brass
Terminals Material Stainless Steel
Cover Material Polycarbonate
Overall Dimension 135mmx33.2mmx14.3mm  (LxWxH)
